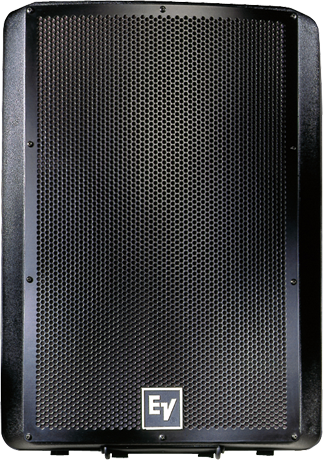

Electro-Voice SX300 Pi passiivi-PA-kaiutin

Electro-Voice SX300 Pi passiivikaiutin
- Säänkestävä 12" 2-tie passiivinen full-range kaiutin

- Sx300 performance with enhanced weather-resistancee
- Ideal for installation, alone or in arrays
- 1.25-inch DH3/2010A titanium HF compression driver
- 65º x 65º Constant-directivity Varipath horn
- Ring-Mode Decoupling (RMD) for increased intelligibility
- Power handling: 300 W continuous, 1200 W peak
- Neutrik Speakon(R) (PI) or Phoenix (PIX) connectors
- Trapezoidal enclosure of high-impact polypropylene
- Rubber feet and mating sockets for stacking
- Integral handles, pole socket, suspension points

Specs:
Frequency Range (-10 dB): 50 - 20000kHz
Weatherized: Yes
Flying: Yes
Minimum Impedance: 5ohm
Nominal Impedance (Passive): 8ohm
HF Transducer: 1.25-inch DH3/2010A
Speaker Type: Full-Range, Two-Way
Woofer Size: 12inch
Powered or Passive: Passive
Max. SPL/1m (calc)²: 131/123dB (Low Z/100V)
Coverage (Nominal -6 dB) H: 65° (Const.-dir. horn)
LF Transducer: 12-inch DL12BFH
Coverage (Nominal -6 dB) V: 65° (Const.-dir. horn)
Power Rating: 300W
System Power Handling (Continuous/Program/Peak): 300//1200Watts
Crossover Frequency: 1500Hz
Enclosure Material: Polypropylene Composite
Available Color: Black
Sensitivity 1 W/1 m: 99dB
Height: 23.07" (586mm)
Width: 16.89" (429mm)
Internal Crossover: Yes
Depth: 12.28" (312mm)
Weight Net: 39.02lbs (17.7kg)
Family: Sx
Input Connections: 2 four-pin Speakon
Directivity Index: 11.1dB (+2.4/-4.1 dB)
Chassis Size: 12" (304.8mm)
Axial Sensitivity (SPL, 1 W @ 1 m): 99dB
