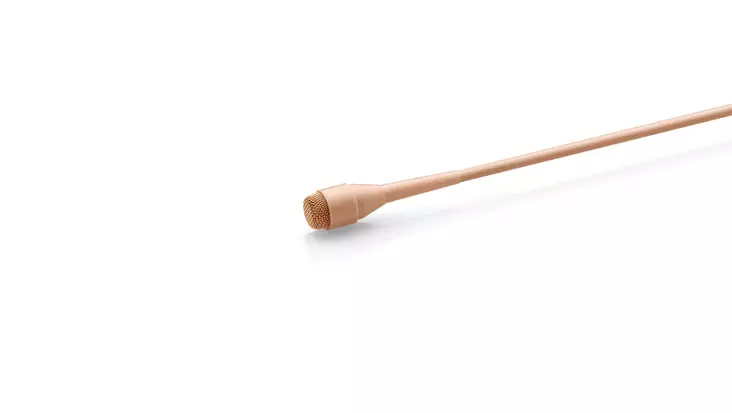

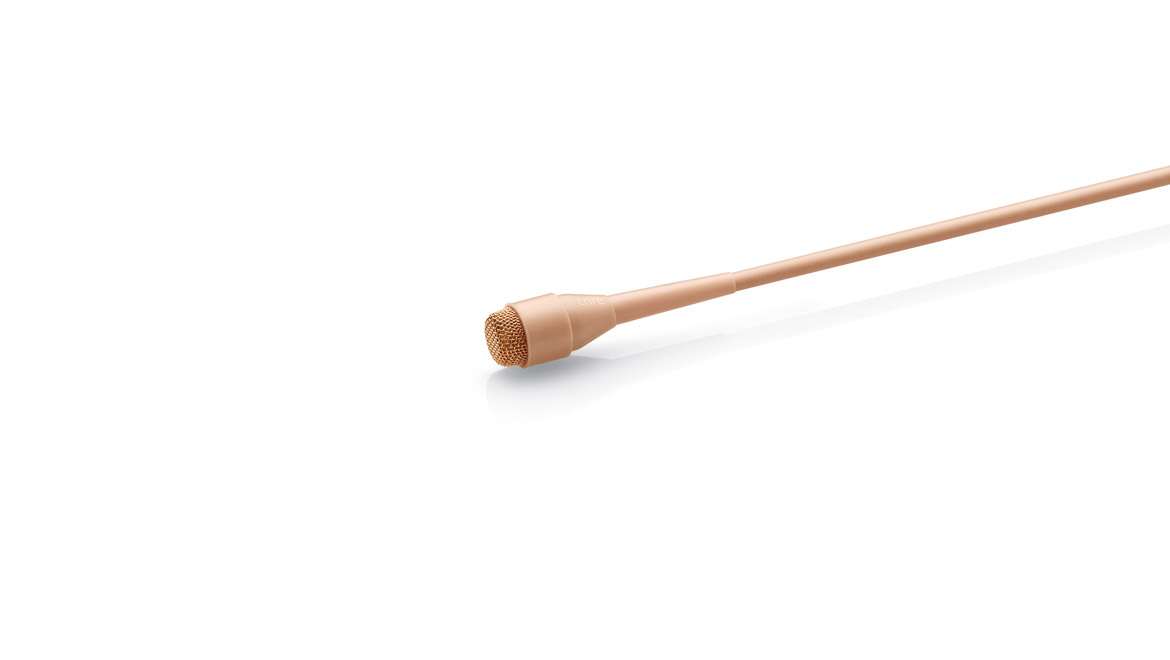

DPA 4061-OC-C-F00 Lavalier-mikrofoni, Beige

DPA 4061-OC-C-F00 Lavalier-mikrofoni (498,00)
- Suuntakuvio: pallo
- Loud SPL
- Max. SPL: 144 dB

4061 microphone is acoustically identical to the 4060 Miniature Omnidirectional Microphone, Normal SPL, but its sensitivity is adjusted to accommodate higher sound pressure levels (SPLs).

The 4061 Miniature Omnidirectional Microphone, Loud SPL can handle SPL up to 144 dB peak before clipping, making it one of the best miniatures for use on very loud sound sources, such as some instruments and human voices.

In comparison, the 4061 is about 10 dB less sensitive than the 4060 and therefore works well when used for hidden applications, for example mounted on the head or forehead of a theater performer. In this placement, the sound pressure level is about 10 dB louder than what you encounter with chest placement (lapel microphone).

Specifications
Directional pattern: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser
Frequency response: 20 Hz - 20 kHz
Effective frequency range ±2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
Distortion, THD < 1% - CORE: 134 dB SPL RMS, 137 dB SPL peak
Dynamic range - Legacy: Typ. 97 dB
Dynamic range - CORE: Typ. 111 dB
Max. SPL, THD 10%: 144 dB SPL peak
Rated output impedance: 30 - 40 ohm
Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
Power supply (for full performance): For wireless systems: Min. 5 V - max. 10 V through DPA adapter. With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
Connector: MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
Weight: 7.5 g (0.26 oz) incl. Cable and MicroDot connector
Microphone diameter: 5.4 mm (0.21 in)
Microphone length: 12.7 mm (0.5 in)
Cable length: 1.8 m (5.9 ft)
Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH): Up to 90%
Sensitivity selection tolerance (at 1 kHz): ±1.5 dB
