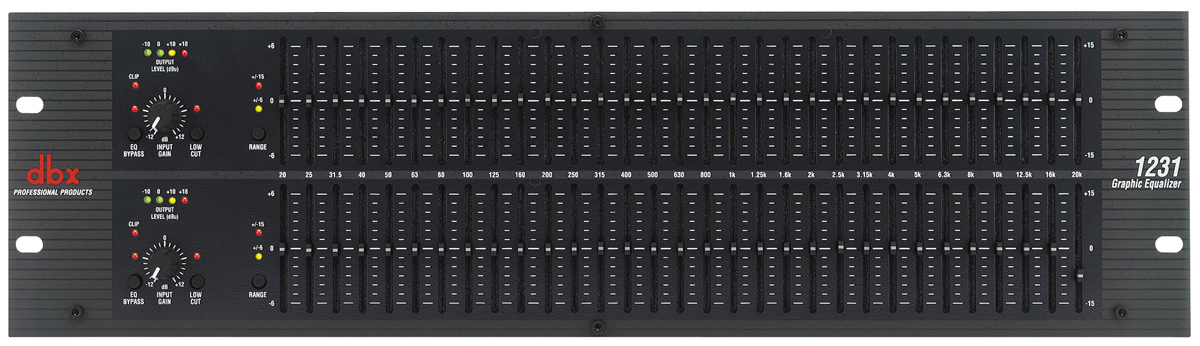

DBX 1231 2x31-alueinen EQ, 3U

DBX 1231 graafinen taajuuskorjain (599,00)
- 2 x 31-alueinen terssikorjain
- 19":n räkkivarustuksella, 3 unittia
- studio-, hifi- ja livekäyttöön

The dbx® 12 Series were designed to meet the needs of the most demanding sound reinforcement environments,
while offering the simplicity of straightforward controls. The 1231 provides standard features like dual-channels,
31 1/3 octave bands, ISO frequency centers, +/- 12 dB input gain range, and switchable 40Hz/18 dB per octave low-cut filters,
but also includes other insightful features. These include 45 mm faders; selectable +/-6dB or +/-15dB boost/cut range for
precise gain adjustments; XLR, barrier strip, and 1/4'' TRS connectors for installation ease; balanced inputs and outputs for
quiet operation; and chassis/signal ground lift capabilities for quick hum isolation. The visionary design of the dbx 12 Series makes your job easier.

The dbx 12 Series Equalizers were precision engineered to provide years of maintenance-free operation in any application.
The magnetically isolated transformer, electronically balanced/unbalanced inputs and servo balanced/unbalanced outputs,
RF-filtered inputs and outputs, and power-off hard-wire relay bypass with 2 second power up delay were steps our engineers
took to ensure compatibility for all installations. Only the best components were utilized, yielding a 10Hz to 50kHz frequency response,
greater than 90dB SNR (ref +4dBu), less than 0.005% THD +Noise (1kHz at +4dBu), and interchannel crosstalk of less than -80dB
from 20Hz to 20kHz. All this attention to detail is contained in a 3U steel/aluminum chassis.

Features:

Switchable boost/cut ranges of ±6 or ±15 dB
Electronically balanced/unbalanced inputs
Servo balanced/unbalanced outputs
RF filtered inputs and outputs
XLR, Barrier Strip, and 1/4" TRS connectors
-12dB/+12dB input gain range
18dB/octave 40Hz Bessel low-cut filter
Chassis/signal ground lift capability
Internal power supply transformer
Power-off hardwire relay bypass with 2-second power-up delay
