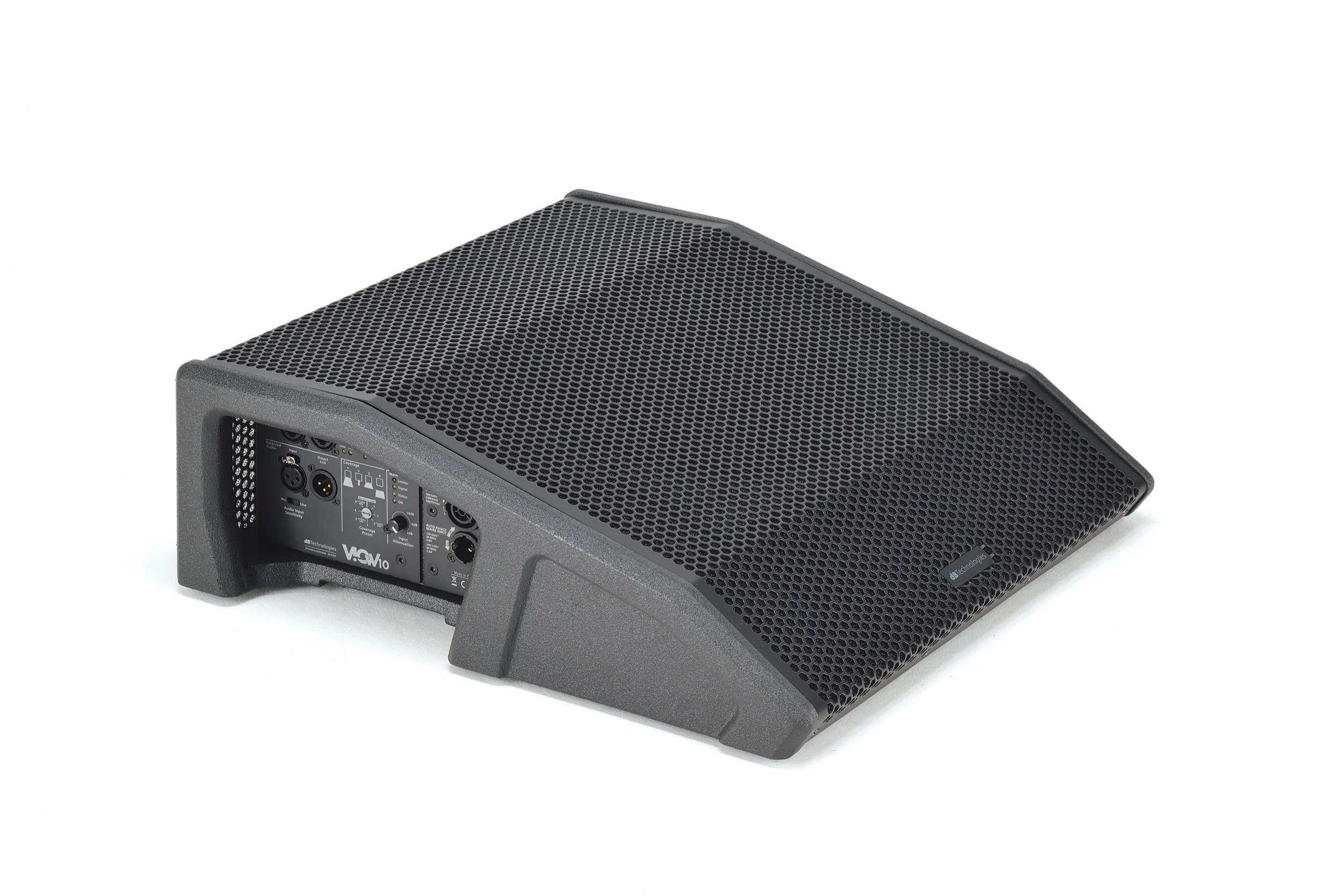

DB Technologies VIO W10 aktiivikulmamonitori

dB Technologies VIO W10 (2490,00)
- Matalaprofiilinen ammattikäyttöön tarkoitettu aktiivikulmamonitori
- Vain 13,5 senttimetrin korkuinen lavamonitori ei tunge kuvaan TV:ssä, eikä varjosta eturivin näköalaa teatterinkaan estradilla
- Aktiivinen kulmamonitori, jossa on myös verkko-omnaisuudet
- Säädettävä suuntakuvio
- 1 x 10" + 4 x 4", 126 dB
- 400 Wrms, 13,7 kg

dB VIO W10

• 2-tierakenne
• 1 x 10" bassoelementti
• 4 x 4" keskialue/diskanttielementtiä
• toistoalue 58 Hz –15 kHz
• neljä eri suuntaavuutta, Std, Narrow, Wide ja Far
• ylipäästösuodin, rajataajuus 120 Hz (Narrow, Wide ja Far)
• maksimiäänenpaine 126 dB SPL
• 24 bittiset A/D-muuntimet
• näytetaajuus 48 kHz
• voidaan liittää digitaaliseen RDNet-verkkoon
• ohjattavissa Aurora Net -applikaatiolla

This 2-way wedge is equipped with 4x4” neodymium HF speakers and 1x10” woofer, placed in an exclusive anti-feedback acoustic configuration. The cabinet is driven by a 400 W RMS Digipro G3 amplifier and full remote control is enabled via RD-Net and Aurora Net software.

Digital Sound Processing allows a variable acoustic focus via on-board presets or via software. As a matter of facts, user can easily adapt the wedge performance to the application in use and to the speakers’ needs, choosing among 4 different options: default, close narrow, close wide, far.

VIO W10’s wooden cabinet comes with a black polyurea finish and an exclusive front-rear-grille design which contributes to a peculiar yet discreet look, with a special attention to details. In facts, an integrated handle is hidden on left side to ease transport and a special groove carved on bottom side facilitates the passage of cables under the cabinet, allowing a clean and tidy look on stage.

Technical Data
Speaker Type: 2-Way Active Wedge Monitor

Acoustical data
Usable Bandwith [- 10 dB]: 58 - 15,000 Hz
Frequency Response [- 6 dB]: 68 - 14,000 Hz
Max SPL: 126 dB
HF: 4x 4" - 1" v.c. Neodymium
LF: 1x 10" - 2.5" v.c.
Horizontal Directivity: Dependent on Focus Preset
Vertical Directivity: Dependent on Focus Preset

Amplifier
Amplifier: 400 W RMS Class D Digipro® G3
Cooling: Convection
Power Supply: Auto-range SMPS

Processor
Controller: DSP 28/56 bit
Converter AD/DA: 24 bit/48 kHz
Limiter: Peak, RMS, Thermal
Processing (filters): Linear Phase FIR Filters

Input
Signal Input
1x XLR female, 1x RJ45 Link (RDNet) , 1 x USB (Data Service)

Signal Output
1xXLR male, 1x RJ45 Link (RDNet)

Power Socket
1x PowerCON TRUE1 In
1xPowerCON TRUE1 Out

Controls
1x Rotary Encoder (8 presets)
1 x Input Sensitivity Encoder
1xMic /line switch
1x On LED
1x Status -LED
1x Signal LED
1x Limiter LED
Mechanics
Housing: Wooden cabinet, Polyurea painting
Handles: 1 on left side
Width: 450 mm (17.71 in)
Height: 165 mm (6.49 in)
Depth: 480 mm (18.89 in)
Weight: 13.7 kg (30.20 lbs)
