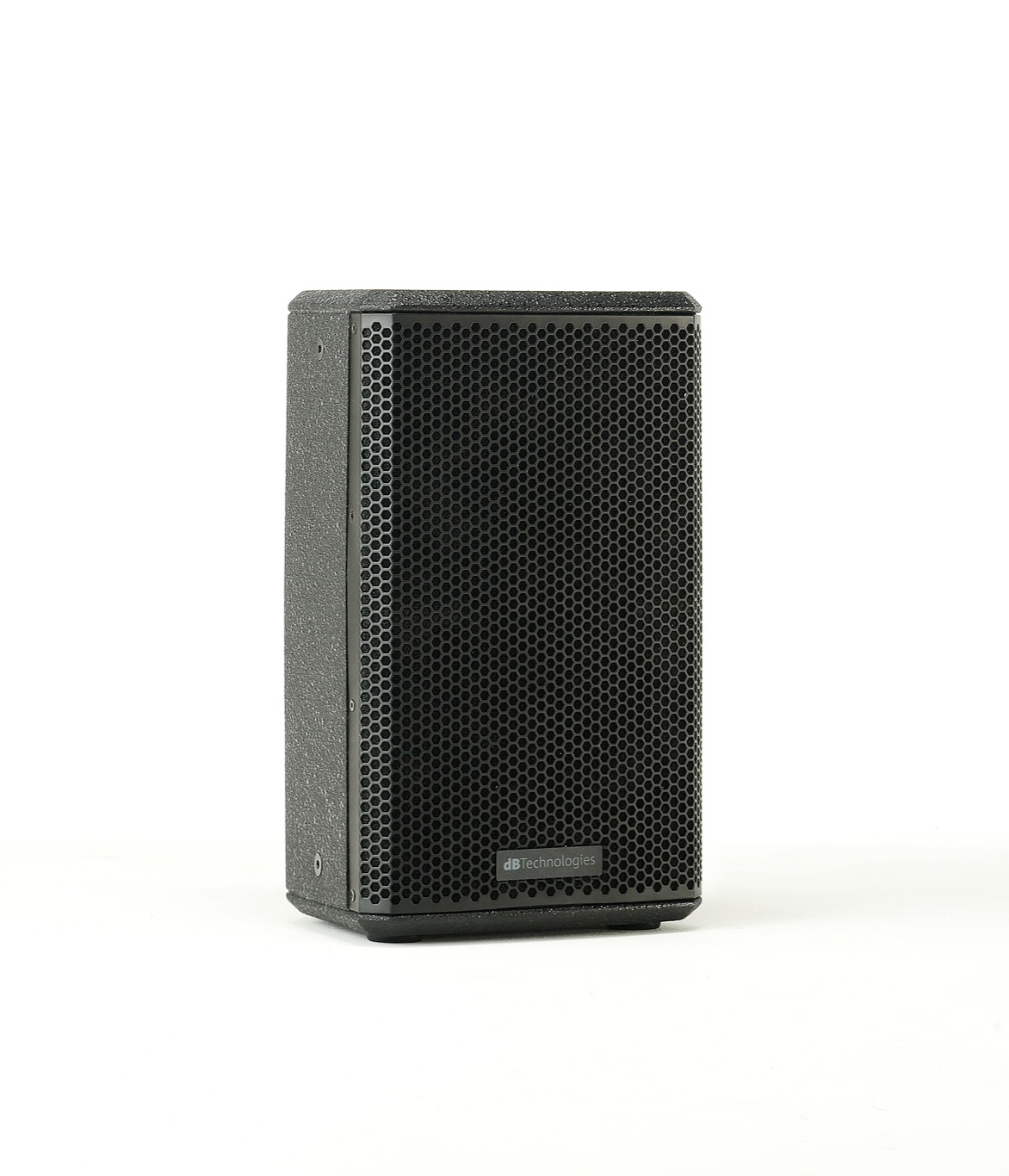

DB Technologies LVX P8 PA-kaiutin

dB Technologies LVX P8 passiivikaiutiin
- 2-tie 8" passiivinen PA-kaiutin
- Elementit: 8" + 1"
- Äänenpaine 122 dB SPL
- Taajuusvaste [- 10 dB] 74 - 18.000 Hz
- Impedanssi 8 ohm
- Peak tehonkesto 400 W
- Speakon sisään- ja ulostulo
- Vanerikotelo
- Voidaan käyttää myös lavamonitorina 40° kulmassa
- Mitat: 255 x 426 x 258 mm (LxKxS)
- Paino: 8,1 kg
- Väri: musta
- Saatavissa myös valkoisena

LVX P cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance.

Full range LVX P8 provides a 90°x70° dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install.

The solid plywood enclosures features a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated horizontal (WB-LP10H or vertical brackets (VB-LP810V).

The cabinet features an integrated handle on back side and a 36 mm pole mount plate.

All enclosures and accessories of LVX P series are available in black or white version.

Technical Data

- Speaker Type: 2-Way Passive Speaker
- Peak Power 400 W
- Impedance: 8 Ohms
- Frequency Response [- 10 dB] 74 - 18.000 Hz
- Max SPL122 dB
- HF: 1 “, 1" v.c.
- Directivity: 90x70°
- Horn: Rotatable
- LF: 8 “, 1.5" v.c.

Input

- Signal Input: 1x Speakon (Pin 1+=+) (Pin 1-=-)
- Signal Output: 1x Speakon (Pin 1+=+) (Pin 1-=-)

Mechanics

- Housing: Plywood
- Pole Mount 36 mm
- Angle Up Monitor use 40°
- Rigging Points: 12 x M8
- Handles: 1 on back side
- Width: 255 mm (10.03 in)
- Height: 426 mm (16.77 in)
- Depth: 258 mm (10.15 in)
- Weight: 8.1 kg (17.8 lbs)
