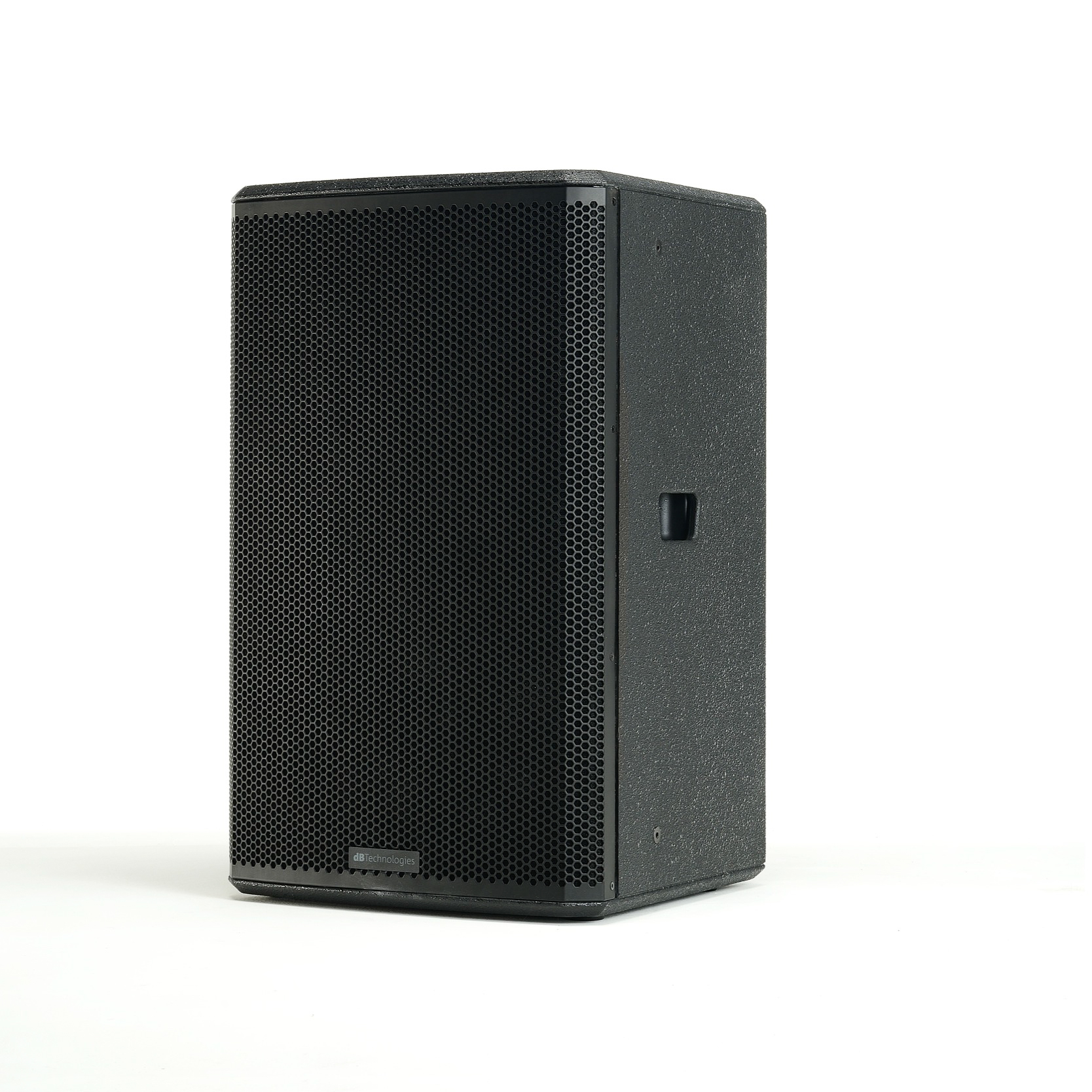

DB Technologies LVX P15 PA-kaiutin

dB Technologies LVX P15 passiivikaiutin
- 2-tie 15" passiivinen PA-kaiutin
- Elementit: 15" + 1"
- Äänenpaine 129 dB SPL
- Taajuusvaste [- 10 dB] 65 - 21.000 Hz
- Impedanssi 8 ohm
- Peak tehonkesto 800 W
- Speakon sisään- ja ulostulo
- Vanerikotelo
- Voidaan käyttää myös lavamonitorina 40° kulmassa
- Mitat: 420 x 680 x 430 mm (LxKxS)
- Paino: 19,7 kg
- Väri: musta
- Saatavissa myös valkoisena

LVX P cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance.

Full range LVX P15 provides a 90°x60° dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install.

The solid plywood enclosures features a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated horizontal (WB-LP15H or vertical brackets (VB-LP1215V).

The cabinet features 1 integrated handle per side and a 36 mm pole mount plate.

All enclosures and accessories of LVX P series are available in black or white version.

- Speaker Type: 2-Way Passive Speaker
- Peak Power 800 W
- Impedance: 8 Ohms
- Frequency Response [- 10 dB] 58 - 21.000 Hz
- Max SPL129 dB
- HF: 1 “, 1.35" v.c.
- Directivity: 90x60°
- Horn: Rotatable
- LF: 15“, 2.5" v.c.
- Signal Input: 1x Speakon (Pin 1+=+) (Pin 1-=-)
- Signal Output: 1x Speakon (Pin 1+=+) (Pin 1-=-)
- Housing: Plywood
- Pole Mount 36 mm
- Angle Up Monitor use 40°
- Rigging Points 12 x M8
- Handles 2 (1X side)
- Width: 420 mm (16.53 in)
- Height: 680 mm (26.77 in)
- Depth: 430 mm (16.92 in)
- Weight: 19.7 kg (43.4 lbs)
