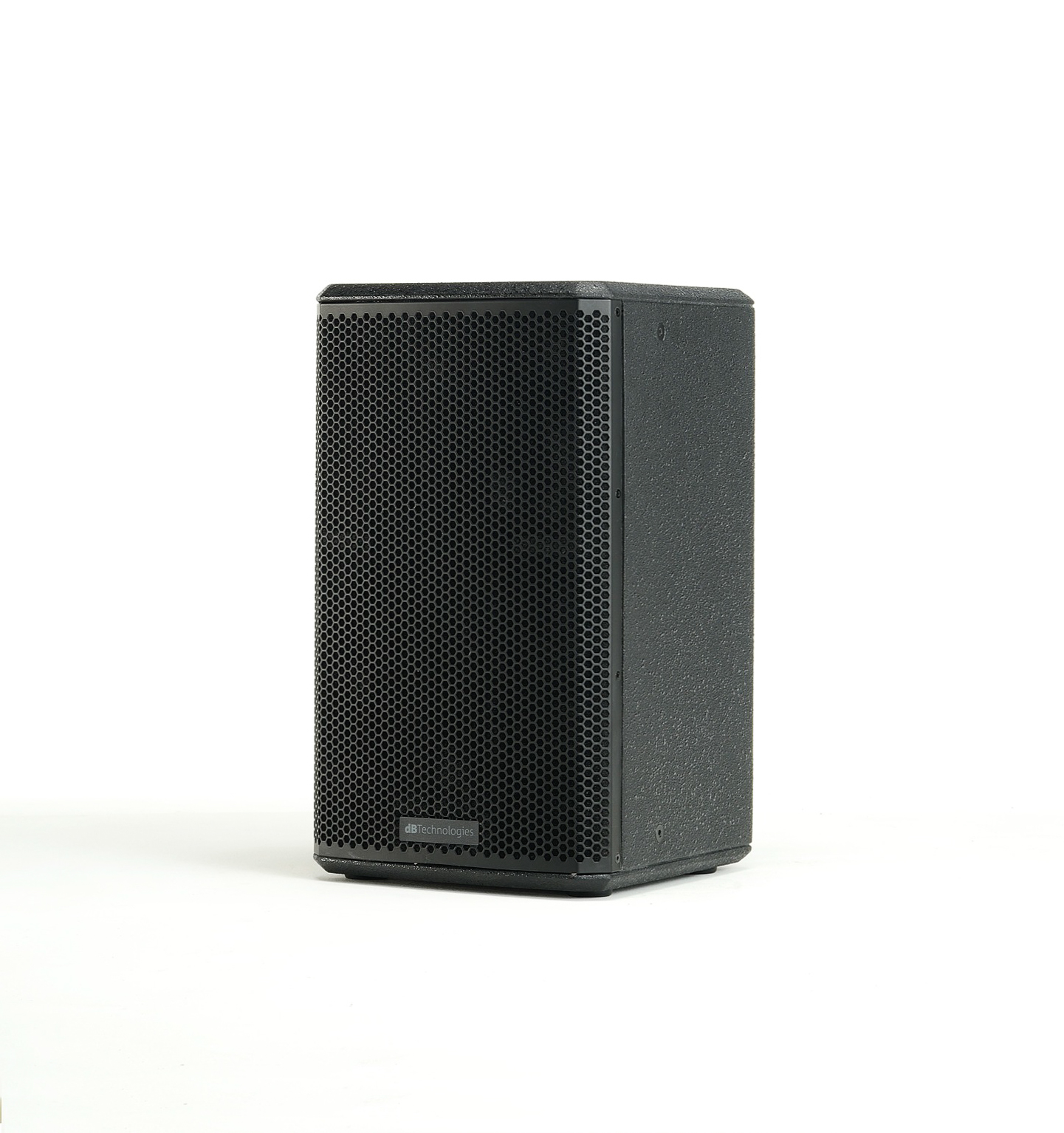

DB Technologies LVX P10 PA-kaiutin

dB Technologies LVX P10 passiivikaiutin (419,00)
- 2-tie 10" passiivinen PA-kaiutin
- Elementit: 10" + 1"
- impedanssi 8 ohm
- Äänenpaine 125 dB SPL
- Taajuusvaste [- 10 dB]: 73- 19.000 Hz
- Impedanssi 8 ohm
- Peak tehonkesto 600 W
- Speakon sisään- ja ulostulo
- Vanerikotelo
- Voidaan käyttää myös lavamonitorina 40° kulmassa
- Mitat: 300 x 496 x 298 mm (LxKxS)
- Paino: 9,3 kg
- Väri: musta
- Saatavissa myös valkoisena

LVX P cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance.

Full range LVX P10 provides a 90°x70° dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install.

The solid plywood enclosures features a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated horizontal (WB-LP810H) or vertical (VB-LP810V) brackets.

The cabinet features an integrated handle on back side and a 36 mm pole mount plate.

All enclosures and accessories of LVX P series are available in black or white version.

Technical Data

Speaker Type: 2-Way Passive Speaker

Acoustical data

- Peak Power 600 W
- Impedance: 8 Ohms
- Frequency Response [- 10 dB]: 73- 19.000 Hz
- Max SPL: 125 dB
- HF1 “, 1" v.c.
- Directivity: 90x70 °
- Horn: Rotatable
- LF10“, 1.5" v.c.

Input

- Signal Input 1x Speakon (Pin 1+=+) (Pin 1-=-)
- Signal Output 1x Speakon (Pin 1+=+) (Pin 1-=-)

Mechanics

- Housing: Plywood
- Pole Mount 36 mm
- Angle Up Monitor use 40°
- Rigging Points 12 x M8
- Handles 1 on back side
- Width: 300 mm (11.81 in)
- Height: 496 mm (19.52 in)
- Depth: 298 mm (11.73 in)
- Weight: 9.3 kg (20.5 lbs)
