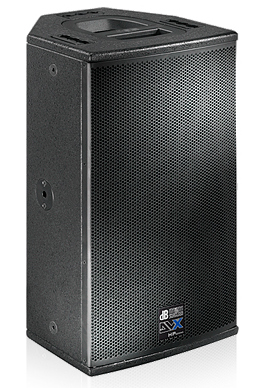

DB Technologies DVX D10 HP aktiivikaiutin
DB Technologies DVX D10 HP aktiivi-PA-kaiutin pro käyttöön puukabinetissa
1500,00 €
- Tuotekoodi: 200600050
- Takuu: 2 vuotta
- Paino pakattuna: 15.8 kg
- Loppuunmyyty
dB Technologies DVX D10 HP aktiivikaiutin (1490,00)
The DVX D10 HP is an active 10“/1“ two-way speaker cabinet perfect for use in music and speech reinforcement applications demanding true frequency response, balanced dynamic response, and assertive sound pressure levels.
Equipped with a high-quality 10” woofer and a 1“ compression driver with rotatable CD horn, the DVX D10 HP is fullrange enabled and can be deployed for many applications without an added subwoofer.
The housing’s multifunctional design incorporates a slanted panel for monitoring, rigging points, and even a special monitor setup controlled by the onboard DSP, which also acts as a controller, providing active equalizer, x-over, limiter, and phase and time alignment functions.
Combining the DVX D10 with a DVA series subwoofer creates remarkably powerful yet compact satellite systems.
TECHNICAL DATA
Speaker Type: 2-Way Active Speake
ACOUSTICAL DATA
Frequency Response [-10dB]: 70 - 20.000 Hz
Frequency Response [+/- 3dB]: 85 - 19.000 Hz
Max SPL: 127 dB
HF: 1 "
Voice Coil HF: Titanium 1.7 "
Directivity: 90x70 °
Horn: CD Horn Aluminium
Rotatable Horn: YES
LF: 10 "
Voice Coil LF:
AMPLIFIER
Amp Technology: Digipro® G2
Amp Class: Class D
Power RMS: 600 W
Peak Power: 1200 W
Cooling: Convection
PROCESSOR
Controller: DSP 24 Bit/48 kHz
System Presets: Flat, Monitor
Limiter: RMS, Peak. Thermal, Multiband
Crossover Frequency MF-HF: 1600 Hz
Slope MF-HF: 24 dB/Octave
MECHANICS
Housing: Multiplex birch plywood
Housing Design: Multifunctional
Angles Up: Monitor use 45 °
Rigging Points: 6x M8 2x 10mm Quick Release for DTF-bracket
Flytracks: 3x on top 3x on bottom
Width: 290 mm (11.6 in)
Height: 510 mm (20.4 in)
Depth: 310 mm (12.4 in)
Weight: 15.8 kg (34.83 lbs
The DVX D10 HP is an active 10“/1“ two-way speaker cabinet perfect for use in music and speech reinforcement applications demanding true frequency response, balanced dynamic response, and assertive sound pressure levels.
Equipped with a high-quality 10” woofer and a 1“ compression driver with rotatable CD horn, the DVX D10 HP is fullrange enabled and can be deployed for many applications without an added subwoofer.
The housing’s multifunctional design incorporates a slanted panel for monitoring, rigging points, and even a special monitor setup controlled by the onboard DSP, which also acts as a controller, providing active equalizer, x-over, limiter, and phase and time alignment functions.
Combining the DVX D10 with a DVA series subwoofer creates remarkably powerful yet compact satellite systems.
TECHNICAL DATA
Speaker Type: 2-Way Active Speake
ACOUSTICAL DATA
Frequency Response [-10dB]: 70 - 20.000 Hz
Frequency Response [+/- 3dB]: 85 - 19.000 Hz
Max SPL: 127 dB
HF: 1 "
Voice Coil HF: Titanium 1.7 "
Directivity: 90x70 °
Horn: CD Horn Aluminium
Rotatable Horn: YES
LF: 10 "
Voice Coil LF:
AMPLIFIER
Amp Technology: Digipro® G2
Amp Class: Class D
Power RMS: 600 W
Peak Power: 1200 W
Cooling: Convection
PROCESSOR
Controller: DSP 24 Bit/48 kHz
System Presets: Flat, Monitor
Limiter: RMS, Peak. Thermal, Multiband
Crossover Frequency MF-HF: 1600 Hz
Slope MF-HF: 24 dB/Octave
MECHANICS
Housing: Multiplex birch plywood
Housing Design: Multifunctional
Angles Up: Monitor use 45 °
Rigging Points: 6x M8 2x 10mm Quick Release for DTF-bracket
Flytracks: 3x on top 3x on bottom
Width: 290 mm (11.6 in)
Height: 510 mm (20.4 in)
Depth: 310 mm (12.4 in)
Weight: 15.8 kg (34.83 lbs
