DB Technologies DVA T8 White aktiivikaiutin (valkoinen)

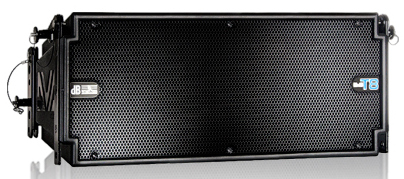

dB Technologies DVA T8 White aktiivikaiutin (valkoinen) Valkoinen aktiivikaiutin. Huom! Tuotekuvat viitteellisiä, kyseessä sama kaiutin kuin kuvissa, mutta valkoisena! TOP PERFORMANCE PAIRED WITH... Lue lisää
2875,00 €
- Tuotekoodi: 200600003W
- Takuu: 4 kuukautta
- Paino pakattuna: 14.2 kg
- Loppu myymälästä, kysy saatavuus asiakaspalvelustammeLähetysaika n. 14-28 arkipäivää
kpl
dB Technologies DVA T8 White aktiivikaiutin (valkoinen)
Valkoinen aktiivikaiutin. Huom! Tuotekuvat viitteellisiä, kyseessä sama kaiutin kuin kuvissa, mutta valkoisena!
TOP PERFORMANCE PAIRED WITH TOTAL CONTROL
The DVA T8 is a fully active, three-way speaker system equipped with the same innovative technologies that feature so prominently in the DVA T12. Its power supply, DSP, power amps, woofers and drivers were all developed and painstakingly tuned specifically for the DVA T8 system by the dBTechnologies team of engineers.
PRECISE DIRECTIVITY
The DVA T8 sports constant directivity horns, HF drivers, andmidrange woofers optimized to deliver a uniform 100°-by-15°coverage pattern. It makes the most of two acoustical effects to help distribute SPL evenly. One is the vector addition of individual horns’ output; the other is cylindrical wave formation. These two effects come together to create a uniform coverage pattern that is easily adapted to different venues by varying the length of the array and adjusting the splay between individual components.
HIGH-DEFINITION TOP END
The 1” neodymium HF drivers feature 1.4” Mylar diaphragms. Exceptionally light and responsive, they deliver richly detailed signals with remarkably linear frequency response. Developed especially for use in line arrays, these drivers may be deployed in very close proximity to one another. This is essential to minimize interference in such arrays.
ACCURATE, AWESOMELY EFFICIENT MIDRANGE RESPONSE
Loaded with a custom 6.5” neodymium midrange, the DVA T8also delivers excellent midrange response, which has such a formative influence on shaping the sonic image. The midrange is housed in a sealed chassis. Its high BL factor makes it even more responsive so that it renders transients faithfully. A phase plug feeds into a frontloaded horn tuned to achieve a uniform coverage pattern.
EXTENDED LOW-END PERFORMANCE
A powerful 8” neodymium woofer, paired with a 350W power amp, covers the low frequency range with an assertive punch that reaches down to 70 Hz.
TECHNICAL DATA
Speaker Type: 3-Way Active Line Array Module
ACOUSTICAL DATA
Frequency Response [+/- 3dB]: 66 - 18.000 Hz
Max SPL: One Unit: 132 dB
HF: 2x1 "
Voice Coil HF: 1.4 "
Directivity: 100x15 ° Single unit
MF: 1x 6.5 "
Voice Coil MF: 2 "
LF: 8 "
Voice Coil LF: 2.5 "
AMPLIFIER
Amp Technology: Digipro® G2
Amp Class: Class D
HF Amp: 175 W RMS
MF Amp: 175 W RMS
LF Amp: 350 W RMS
Cooling: Convection
PROCESSOR
Controller: DSP 56 bit with double precision filters
AD/DA Converter: 24 bit/96 kHz
System Presets: 9, (8xHF and Low-mid correction)
Limiter: Dual Active Limiter Multiband RMS, Peak, Thermal
Crossover Frequency MF-HF: 1900 Hz
Slope MF-HF: 24 dB/Octave
Crossover Frequency LF-MF: 400 Hz
Slope LF-MF: 24 dB/Octave
INPUT
Signal Input: 1x XLR fem, Bal.
Signal Output: 1x XLR male, Bal.
Network: RDnet remote control RJ45 connector IN/OUT
Power Socket: 1x Powercon In 1x Powercon Out
Voltage Range: 90 - 240 V
<span style="text-align: left; widows: 1; text-transform: none; background-color: rgb(255,255,255); text-indent: 0px; letter-spacing: normal; display: inline !import
Valkoinen aktiivikaiutin. Huom! Tuotekuvat viitteellisiä, kyseessä sama kaiutin kuin kuvissa, mutta valkoisena!
TOP PERFORMANCE PAIRED WITH TOTAL CONTROL
The DVA T8 is a fully active, three-way speaker system equipped with the same innovative technologies that feature so prominently in the DVA T12. Its power supply, DSP, power amps, woofers and drivers were all developed and painstakingly tuned specifically for the DVA T8 system by the dBTechnologies team of engineers.
PRECISE DIRECTIVITY
The DVA T8 sports constant directivity horns, HF drivers, andmidrange woofers optimized to deliver a uniform 100°-by-15°coverage pattern. It makes the most of two acoustical effects to help distribute SPL evenly. One is the vector addition of individual horns’ output; the other is cylindrical wave formation. These two effects come together to create a uniform coverage pattern that is easily adapted to different venues by varying the length of the array and adjusting the splay between individual components.
HIGH-DEFINITION TOP END
The 1” neodymium HF drivers feature 1.4” Mylar diaphragms. Exceptionally light and responsive, they deliver richly detailed signals with remarkably linear frequency response. Developed especially for use in line arrays, these drivers may be deployed in very close proximity to one another. This is essential to minimize interference in such arrays.
ACCURATE, AWESOMELY EFFICIENT MIDRANGE RESPONSE
Loaded with a custom 6.5” neodymium midrange, the DVA T8also delivers excellent midrange response, which has such a formative influence on shaping the sonic image. The midrange is housed in a sealed chassis. Its high BL factor makes it even more responsive so that it renders transients faithfully. A phase plug feeds into a frontloaded horn tuned to achieve a uniform coverage pattern.
EXTENDED LOW-END PERFORMANCE
A powerful 8” neodymium woofer, paired with a 350W power amp, covers the low frequency range with an assertive punch that reaches down to 70 Hz.
TECHNICAL DATA
Speaker Type: 3-Way Active Line Array Module
ACOUSTICAL DATA
Frequency Response [+/- 3dB]: 66 - 18.000 Hz
Max SPL: One Unit: 132 dB
HF: 2x1 "
Voice Coil HF: 1.4 "
Directivity: 100x15 ° Single unit
MF: 1x 6.5 "
Voice Coil MF: 2 "
LF: 8 "
Voice Coil LF: 2.5 "
AMPLIFIER
Amp Technology: Digipro® G2
Amp Class: Class D
HF Amp: 175 W RMS
MF Amp: 175 W RMS
LF Amp: 350 W RMS
Cooling: Convection
PROCESSOR
Controller: DSP 56 bit with double precision filters
AD/DA Converter: 24 bit/96 kHz
System Presets: 9, (8xHF and Low-mid correction)
Limiter: Dual Active Limiter Multiband RMS, Peak, Thermal
Crossover Frequency MF-HF: 1900 Hz
Slope MF-HF: 24 dB/Octave
Crossover Frequency LF-MF: 400 Hz
Slope LF-MF: 24 dB/Octave
INPUT
Signal Input: 1x XLR fem, Bal.
Signal Output: 1x XLR male, Bal.
Network: RDnet remote control RJ45 connector IN/OUT
Power Socket: 1x Powercon In 1x Powercon Out
Voltage Range: 90 - 240 V
<span style="text-align: left; widows: 1; text-transform: none; background-color: rgb(255,255,255); text-indent: 0px; letter-spacing: normal; display: inline !import
