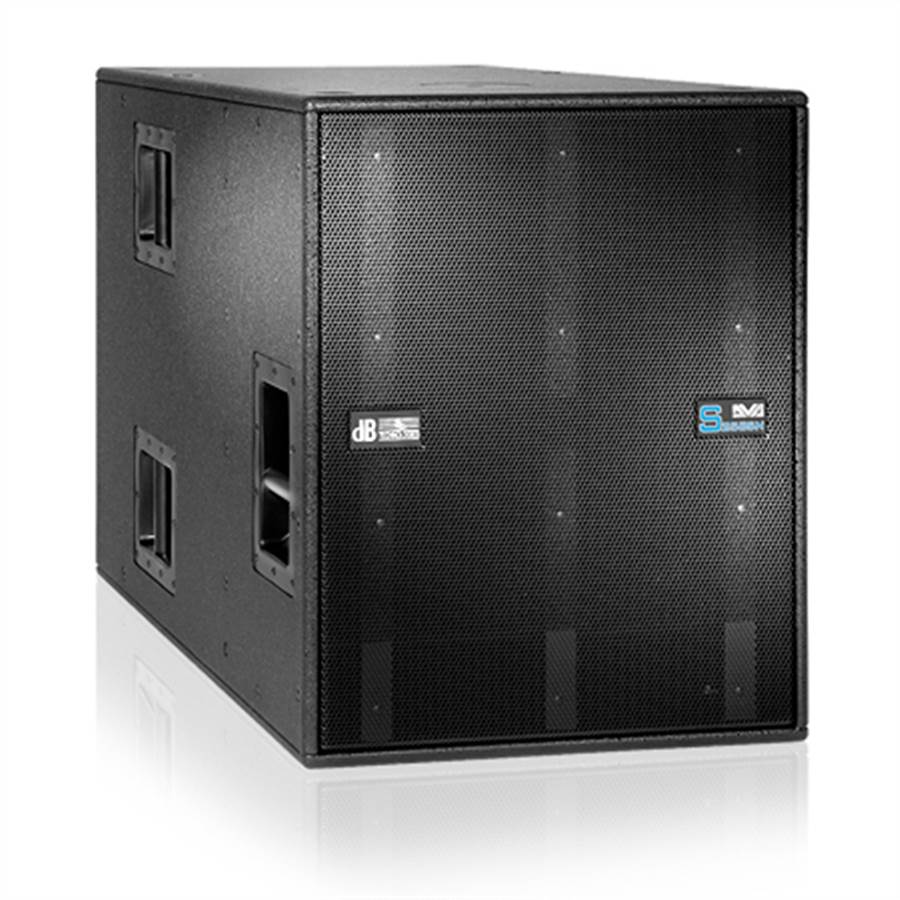

DB Technologies DVA S2585N Cardioid Sub

DB Technologies DVA S2585N Cardioid Sub

Cardiod- Design
Many systems lack low-frequency directivity and, as a result, are plagued by interference and annoying noise.

The S2825N, in contrast, was engineered specifically for enhanced low-frequency directivity.
And it not only sounds great, it is also easy to handle and transport.

Factory-equipped with an RDnet port, this subwoofer is ready for integration into elaborate, remotely controlled and monitored DVA T12 sound reinforcement systems via RJ45 inputs and outputs that connect the units to the RDnet hub.

TECHNICAL DATA

Speaker Type: Active Cardiod-Subwoofer

ACOUSTICAL DATA

Frequency Response [+/- 3dB]: 35 - 120 Hz
Max SPL: 140 dB
Directivity: Cardiod
LF: 18+15 "
Voice Coil LF: 4 "

AMPLIFIER

Amp Technology: Digipro® G2
Amp Class: Class D
Power Supply: 2.5 kW SMPS
LF Amp: 2500 W RMS
Cooling: Convection

PROCESSOR

Controller: DSP 56 bit
AD/DA Converter: 24bit/ 96 kHz
System Presets: X-Over,Delay
Phase: 0, 180 °
Limiter: RMS, Peak, Thermal
Delay Option: 0-4.5 ms internal
Crossover Frequency LF-MF: 75-120Hz | steps of 5Hz
LF-Xover out slope: 24 dB/Octave

MECHANICS

Housing: Multiplex birch plywood
Housing Design: Rectangular
Handles: 3x Per Side
Accessory: Dolly, Dust Cover, Rain Cover
Pole Mount: M20
Rigging Points: integrated for SRK10 fly kit 2xPick Points on top to fix DRK10/20 rigging frames
Width: 515 mm (20.6 in)
Height: 640 mm (25.6 in)
Depth: 1000 mm (40 in)
Weight: 65 kg (143.3 lbs)
