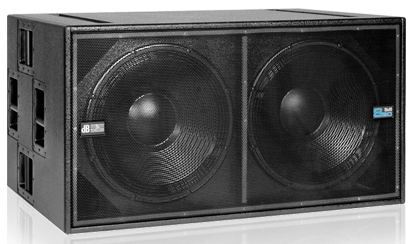

DB Technologies DVA S20DP aktiivisubwoofer

dB Technologies DVA S20 aktiivisubwoofer
- Huom ! iso ja painava laatikko. Toimitus sovittavissa erikseen !

- DVA-Sarjan järeä 2x18'' aktiivisubwoofer - 2000 W rms - 30 Hz -120 Hz - 138 dB SPL - Massa: 84 kg

Featuring a dual 18” subwoofer pairing in a bass reflex housing, the DVA S20 delivers powerful performance, rendering frequencies as low as 25 hertz assertively and with impressive authority.
It is the perfect sub-bass provider for DVA S10/T4 systems and an excellent complement to DVA T4 mid-/high-range units in stacked arrays.

Thanks to the integrated Quick-Release-Pins, both DRK-10 and DRK-20 frames can be easily mounted to set up a ground stacked system.
ade of sturdy birch multiplex covered in robust black textured lacquer, the subwoofer housing is fronted with a rugged speaker grille.
The enclosure is easy to tote with its comfortable carrying handles.

TECHNICAL DATA
Speaker Type: Active Bassreflex Subwoofer

ACOUSTICAL DATA
Frequency Response [+/- 3dB]: 35 - 120 Hz
Max SPL: 138 dB
Directivity: Omnidirectional, Cardiod Option with SDD Module
LF: 2x18 "
Voice Coil LF: 4

AMPLIFIER
Amp Technology: Digipro®
Amp Class: Class D
LF Amp: 2000 W RMS
Cooling: Convection

PROCESSOR
Controller: Analog
Limiter: RMS, Peak, Thermal
Delay Option: SDD Module
Crossover Frequency LF-MF: 90, 120 Hz
LF-Xover out slope: 24 dB/Octave

MECHANICS
Housing: Multiplex birch plywood
Housing Design: Rectangular
Handles: 4x Per Side
Accessory: Wheels 100mm, Dust Cover
Rigging Points: 2xPick Points on top to fix DRK10/20 rigging frames
Width: 1100 mm (44 in)
Height: 580 mm (23.2 in)
Depth: 720 mm (28.8 in)
Weight: 84 kg (185.19 lbs)
