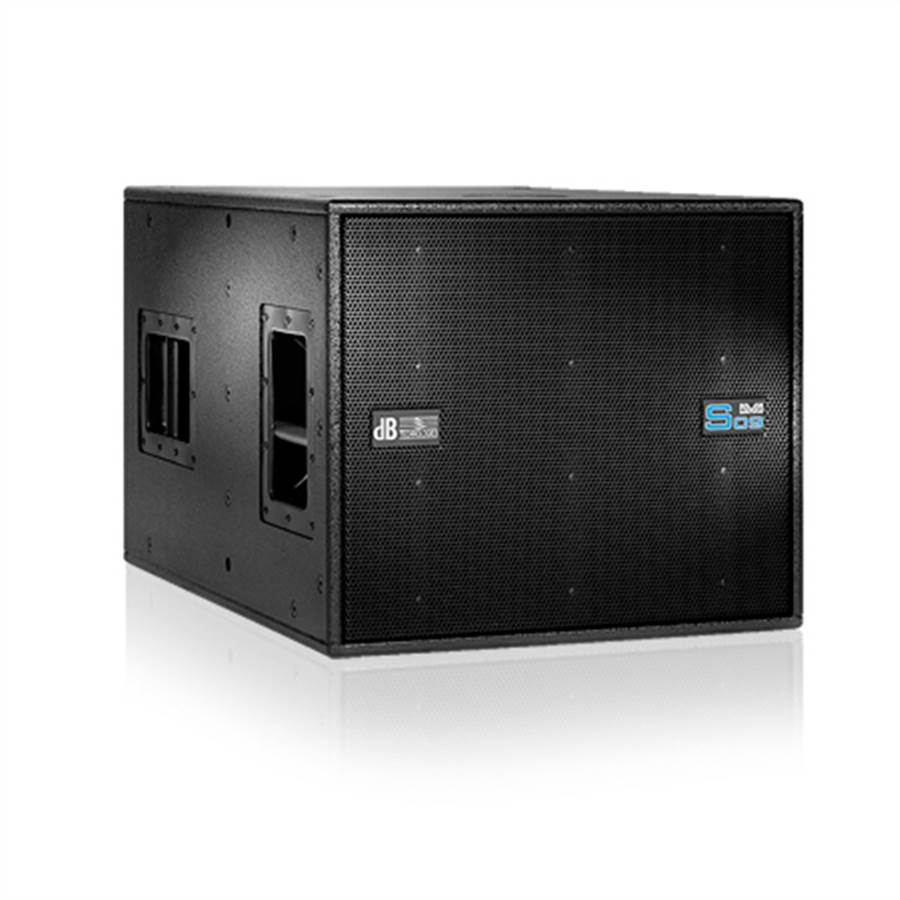

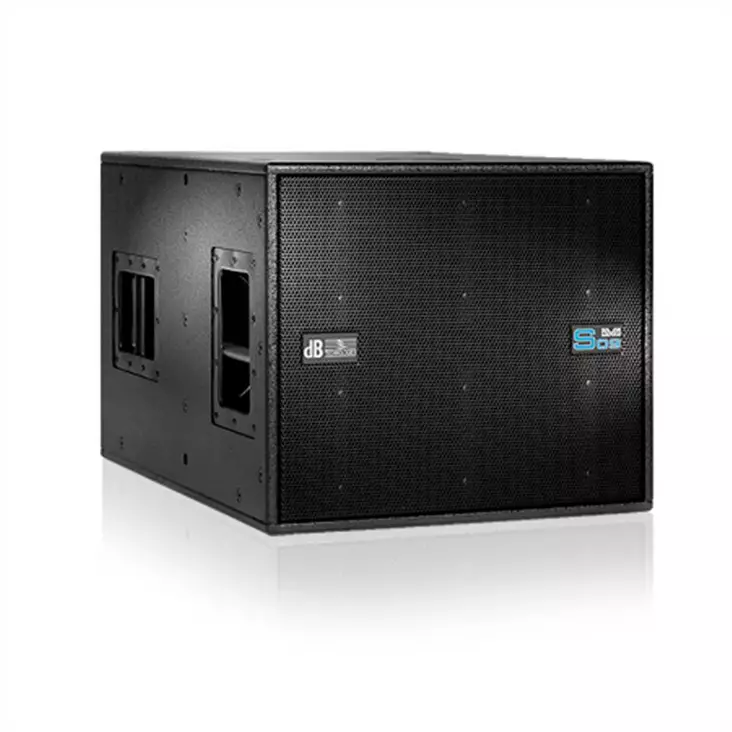

DB Technologies DVA S09 dp aktiivisubwoofer

dB Technologies DVA S09 dp aktiivisubwoofer
- Huom ! iso ja painava laatikko. Toimitus sovittavissa erikseen !

A remarkably compact 15“ subwoofer in a band-pass design, the

DVA S09 DP delivers true, tight, and punchy bass response.
With a height of just 44 cm, it can be flown above DVA T4 modules to keep the rig‘s footprint inconspicuous.
The S09 comes with two features that make it the perfect base for a high-quality satellite system, for example, when paired with the DVX D10.

One is an integrated active stereo crossover with two cutoff frequencies to choose from, 90Hz and 120Hz.
The other is a phase inversion switch.

One PowerCon socket connects to the mains power supply, while two PowerCon outputs connect satellites. Retrofitted with the optional SRK-09 fly kit, the DVA S09 DP subwoofer is easily rigged to a DRK-10 harness and flown alongside further DVA T4 mid-/high-range units.

S09 subwoofer and rigging accessories are also in available white. The white enclosure comes without grips, conjuring a sleeker look suitable for permanent installation

TECHNICAL DATA

Speaker Type: Active Bandpass Subwoofer
ACOUSTICAL DATA
Frequency Response [+/- 3dB]: 45 - 120 Hz
Max SPL: 134 dB
Directivity: Omnidirectional
LF: 15 "
Voice Coil LF: 4 "

AMPLIFIER

Amp Technology: Digipro®
Amp Class: Class D
LF Amp: 1000 W RMS
Cooling: Convection
PROCESSOR
Controller: Analog (Stereo)
Phase: 0, 180 °
Limiter: RMS, Peak, Thermal
Delay Option: NO
Crossover Frequency LF-MF: 90, 120 Hz
LF-Xover out slope: 24 dB/Octave

MECHANICS

Housing: Multiplex birch plywood
Housing Design: Rectangular
Color: Black, White
Handles: 2x Side
Pole Mount: 1x M20
Rigging Points: 2xPick Points on top to fix DRK10/20 rigging frames
Accessory: Wheels 100mm, Dust Cover, Rain Cover
Width: 515 mm (20.6 in)
Height: 440 mm (17.6 in)
Depth: 720 mm (28.8 in)
Weight: 37.5 kg (82.67 lbs)
