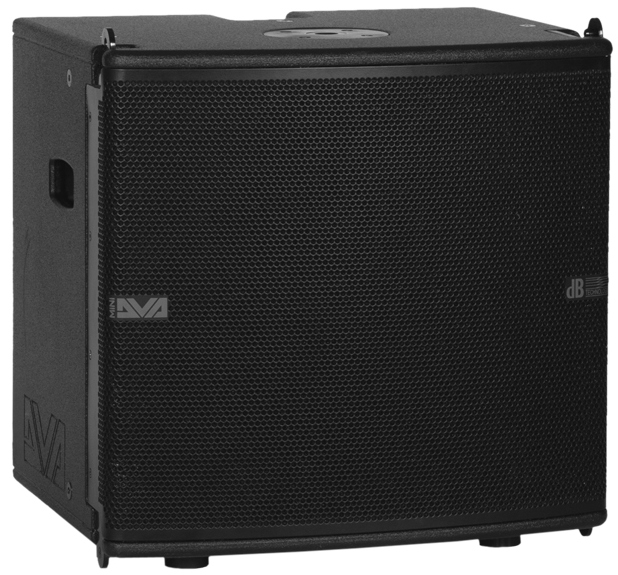

DB Technologies DVA MS12 aktiivisubwooferi
DB Technologies DVA MS12 kompakti 12" aktiivisubwooferi
1719,00 €
- Tuotekoodi: 200600200
- Takuu: 2 vuotta
- Paino pakattuna: 26.5 kg
kpl
dB Technologies DVA MS12 aktiivisubwoofer (1690,00)
Especially designed to fit perfectly with an M2M and M2S array, the MS12 is equipped with a single 12" woofer in a bass reflex enclosure, acting as a perfect low-end extension module for DVA mini systems.
Versatility:
This subwoofer delivers an incredible SPL considering its very compact dimensions, and it can be easily used both flown and ground stacked. The smart design of the feet allows the user to avoid the dull removal of the flying brackets: it is possible to remove the feet in few seconds and screw them again upside-down. In this way any contact between the flying brackets and the ground is avoided, as only the rubber feet will touch it. A practical X-over out can be used to feed signal straight to the line arrays modules, simplifying considerably the signal and power cabling.
Digipro G3 Class-D amplifier
DVA MS12 comes with the new generation of exclusive digital amplifiers Digipro G3.
Engineered by dBTechnologies, these new amplifiers deliver a power that you canít expect from such a small amplifier. Distinguished by great new features, an exceptionally lightweight design and a very remarkably efficiency, it pushes the system performance at its maximum. In order to let the speaker play flawlessly with both 110V~ and 220V~ power, a Switched Mode Power Supply with auto-range circuit has been built inside the DVA MS12.
Download telemetry from USB:
An integrated USB B-type port on the DVA MS12 amplifier allows the user to access the complete telemetry of the sub, monitoring the status of the speaker, including total playing hours, temperatures and performances reports. Furthermore it is possible to download a file log as a status report, as well as upgrade the Firmware of the DVA MS12 using the same USB port.
TECHNICAL DATA
Speaker Type: Active bass reflex flyable subwoofer
ACOUSTICAL DATA:
-Frequency Response [-6dB]: 45 - 140 Hz
-Frequency Response [-10dB]: 40 - 165 Hz
-Max SPL: 131 dB
-LF: 12"
-Voice Coil LF: 3"
-Directivity: Omnidirectional
AMPLIFIER
-Amp Technology: Digipro® G3
-Amp Class: Class D
-Power Supply: 700W SMPS with PSU Auto-range (110V~ and 220V~)
-LF Amp: 700 W RMS (1400 W Peak)
-Cooling: Convection
PROCESSOR
-Controller: DSP 56 bit
-AD/DA Converter: 24 bit/48 kHz
-Controls: X-Over frequency selection, Phase selection (0° or 180°), Outputs mode selection (Link/X-over), Mini-USB type “B” port (service data)
-Limiter: Dual active, RMS/Peak, Thermal
-Crossover Frequency LF-HF: 110 - 140 Hz
-LF X-over out slope: 24 dB/Octave
MECHANICS
-Housing: Multiplex birch plywood - Polyurea painting
-Handles: 1x left side, 1x right side
-Feet: 4x Dual Position Reversable Feet (flying/stacking mode)
-Fittings: M20 screw for pole mount on top side, integrated hardware with fast lock mechanics
-Width: 460 mm (18.1 in)
-Height: 430 mm (16.9 in)
-Depth: 385 mm (15.2 in)
-Weight: 26.5 kg (58.4 lbs)
- kompakti aktiivisubwooferi erityisesti dB DVA Mini line-array -kaiutinparille
- 1 x 12”
- Toistoalue 45 Hz - 140 Hz
- Teho: 700 W rms
- Äänenpainetaso 131 dB per yksikkö
- mitat: 460 x 430 x 385 mm3
- massa 26,5 kg
Especially designed to fit perfectly with an M2M and M2S array, the MS12 is equipped with a single 12" woofer in a bass reflex enclosure, acting as a perfect low-end extension module for DVA mini systems.
Versatility:
This subwoofer delivers an incredible SPL considering its very compact dimensions, and it can be easily used both flown and ground stacked. The smart design of the feet allows the user to avoid the dull removal of the flying brackets: it is possible to remove the feet in few seconds and screw them again upside-down. In this way any contact between the flying brackets and the ground is avoided, as only the rubber feet will touch it. A practical X-over out can be used to feed signal straight to the line arrays modules, simplifying considerably the signal and power cabling.
Digipro G3 Class-D amplifier
DVA MS12 comes with the new generation of exclusive digital amplifiers Digipro G3.
Engineered by dBTechnologies, these new amplifiers deliver a power that you canít expect from such a small amplifier. Distinguished by great new features, an exceptionally lightweight design and a very remarkably efficiency, it pushes the system performance at its maximum. In order to let the speaker play flawlessly with both 110V~ and 220V~ power, a Switched Mode Power Supply with auto-range circuit has been built inside the DVA MS12.
Download telemetry from USB:
An integrated USB B-type port on the DVA MS12 amplifier allows the user to access the complete telemetry of the sub, monitoring the status of the speaker, including total playing hours, temperatures and performances reports. Furthermore it is possible to download a file log as a status report, as well as upgrade the Firmware of the DVA MS12 using the same USB port.
TECHNICAL DATA
Speaker Type: Active bass reflex flyable subwoofer
ACOUSTICAL DATA:
-Frequency Response [-6dB]: 45 - 140 Hz
-Frequency Response [-10dB]: 40 - 165 Hz
-Max SPL: 131 dB
-LF: 12"
-Voice Coil LF: 3"
-Directivity: Omnidirectional
AMPLIFIER
-Amp Technology: Digipro® G3
-Amp Class: Class D
-Power Supply: 700W SMPS with PSU Auto-range (110V~ and 220V~)
-LF Amp: 700 W RMS (1400 W Peak)
-Cooling: Convection
PROCESSOR
-Controller: DSP 56 bit
-AD/DA Converter: 24 bit/48 kHz
-Controls: X-Over frequency selection, Phase selection (0° or 180°), Outputs mode selection (Link/X-over), Mini-USB type “B” port (service data)
-Limiter: Dual active, RMS/Peak, Thermal
-Crossover Frequency LF-HF: 110 - 140 Hz
-LF X-over out slope: 24 dB/Octave
MECHANICS
-Housing: Multiplex birch plywood - Polyurea painting
-Handles: 1x left side, 1x right side
-Feet: 4x Dual Position Reversable Feet (flying/stacking mode)
-Fittings: M20 screw for pole mount on top side, integrated hardware with fast lock mechanics
-Width: 460 mm (18.1 in)
-Height: 430 mm (16.9 in)
-Depth: 385 mm (15.2 in)
-Weight: 26.5 kg (58.4 lbs)
