DB Technologies DVA KS20 aktiivisubwoofer

- Huom ! iso ja painava laatikko, . Toimitus sovittavissa erikseen !

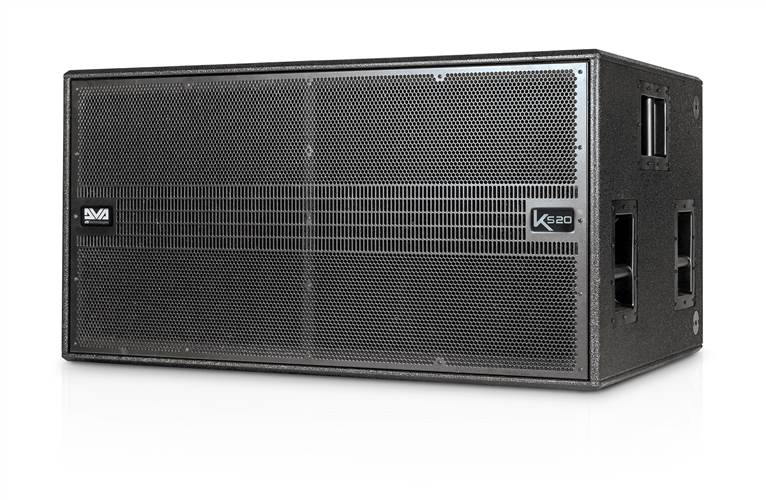

dB Technologies DVA KS20 aktiivisubwoofer

Featuring a double 18" woofer pairing in a bass reflex housing, the DVA KS20 is equipped with 2x Digipro G3 Power Amplifiers delivering 4000 W Peak. The system's internal design brings together the benefits of bass reflex and horn- loaded systems in a compact, sturdy housing covered with robust black laquer. The 56 Bit DSP manages limiters and delays for flawless system processing.
DVA KS20 is the perfect low-end complement for larger DVA K5 systems and can be used vertically in groundstacked configurations thanks to the DRK-20/10 pickpoints on top.

Featuring a double 18" woofer pairing in a bass reflex housing, the DVA KS20 is equipped with 2x Digipro G3 Power Amplifiers delivering 4000 W Peak. The system's internal design brings together the benefits of bass reflex and horn- loaded systems in a compact, sturdy housing covered with robust black laquer. The 56 Bit DSP manages limiters and delays for flawless system processing.

DVA KS20 is the perfect low-end complement for larger DVA K5 systems and can be used vertically in groundstacked configurations thanks to the DRK-20/10 pickpoints on top.

Features

Technical Data

Speaker Type: Active Bassreflex-Horn Subwoofer

Acoustical data

Frequency Response [+/- 3dB]: 34 - 120 Hz
Max SPL: 138 dB
Directivity: Omnidirectional
LF: 2x18 "
Voice Coil LF: 4 "

Amplifier

Amp Technology: Digipro® G3
Amp Class: Class D
RMS : 2000 W
Peak : 4000 W
Cooling: Convection
Power Supply : 2000 W SMPS with auto range PSU

Processor

Controller: DSP 56 Bit
AD/DA Converter : 24 Bit /48 Hz
Limiter: DUal Active Multiband RMS, Peak, Thermal
Crossover Frequency LF-HF: 90, 120 Hz
Slope LF-HF: 24 dB/Octave

Input

Input Selection : 2x XLR Balanced
Output Selection : 2x XLR Balanced
Power Socket : 1x Powercon in + 1x Powercon Out
Input Sensitivity Rotary Switch : 1
Setup Rotary Encoder : 1 with delay up to 4.5 ms
Phase Inversion Swotch : 1 (0°-180°)
X-over Frequency Switch : 1 (90 Hz- 120 Hz)
Output mode Switch : 1 (link- X-Over)

Mechanics

Housing: Multiplex birch plywood
Housing Design: Rectangular
Handles: 4x Per Side
Accessory: Wheels 100mm, Dust Cover
Rigging Points: 2xPick Points on top to fix DRK10/20 rigging frames
Width: 1100 mm (44 in)
Height: 580 mm (23.2 in)
Depth: 720 mm (28.8 in)
Weight: 84 kg (185.19 lbs)
