DB Technologies DVA KS10 aktiivisubwoofer

- Huom ! iso ja painava laatikko, . Toimitus sovittavissa erikseen !

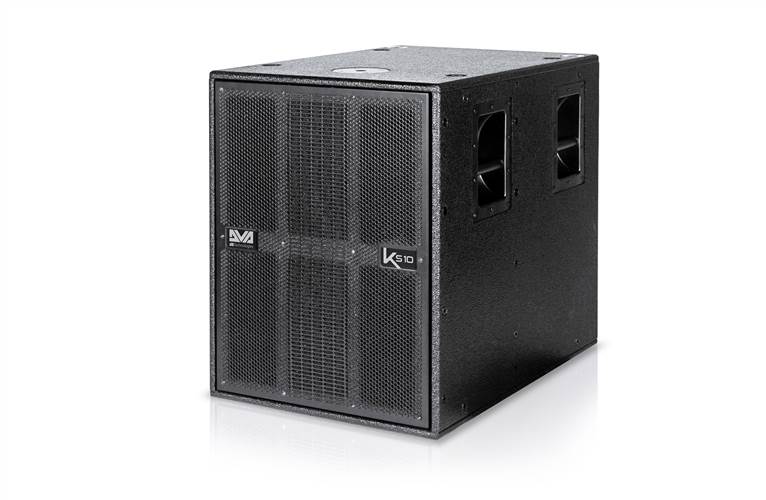

dB Technologies DVA KS10 aktiivisubwoofer (2490,00)

The semi horn loaded subwoofer DVA KS10 is equipped with a single 18" woofer driven by a Class-D Digipro@G3 power amp delivering 2000W Peak and reaching 134 dB SPL. Maximun versaility is granted by a stereo input/output balanced pre-amp Crucially, KS10 can be used as a compact PA system (together with DVA K5 on a speaker pole) or groundstacked, but can also be flown thanks to the optionally available flyware. A dedicated encoder aloows to apply up to 4.5 ms of delay, with 0.5 ms speps. A switch allows to invert the phase by 180° as well as changing the LPF from 90 Hz to 120 Hz.

Features

Technical Data

Speaker Type: Active Semi-horn loaded Flyable Subwoofer

Acoustical data

Frequency Response [+/- 3dB]: 39 - 120 Hz
Max SPL: 134 dB
Directivity: Omnidirectional
LF: 18 "
Voice Coil LF: 4 "

Amplifier

Amp Technology: Digipro® G3
Amp Class: Class D
RMS Power : 1000 W
Peak Power : 2000 W
Cooling: Convection
Power Supply : 1000 W SMPS with auto range PSU

Processor

Controller: DSP 56 Bit
AD/DA COnverter : 24 Bit / 48 KHz
Limiter: RMS, Peak, Thermal
Crossover Frequency LF-MF: 90, 120 Hz (selectable)
Slope LF-MF: 24 dB/Octave

Input

Input Section : 2X XLR Balanced
Output Section : 2x XLR Balanced
Power Sockets: 1 x Powercon In + 1 x Powercon Out
Input Sensitivity Rotary Switch : 1
DSP Setup Rotary Encoder : 1 with (up to 4.5 Ms)
Phase Inversion Switch : 1 (0°-180°)
X-Over Frequency Switch : 1 (90 Hz-120Hz)
Outputs Mode Switch : 1 (Link - X-Over)

Mechanics

Housing: Multiplex birch plywood
Color: Black
Handles: 2x Side
Pole Mount: 1x M20 on top
Rigging Points: integrated for SRK10 fly kit (optional) 2xPick Points on top to fix DRK10/20 flybar
Width: 515 mm (20.6 in)
Height: 640 mm (25.6 in)
Depth: 720 mm (28.8 in)
Weight: 48 kg (105.82 lbs)
