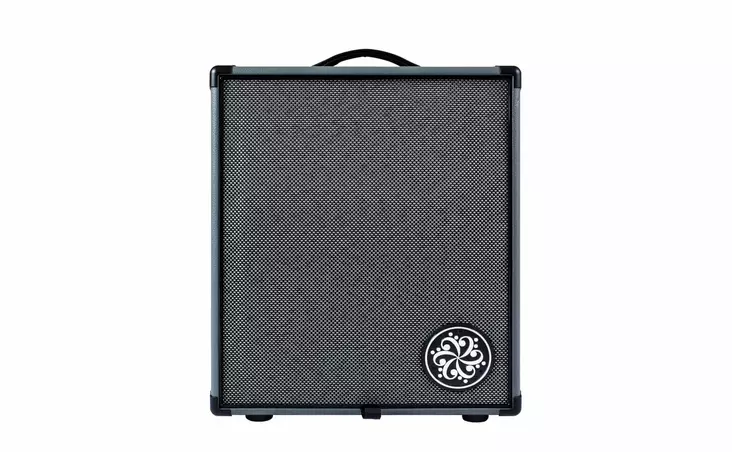

Darkglass Microtubes 500 Combo 112

Darkglass Microtubes 500 Combo 112

Äärimmäistä äänenlaatua ja siirrettävyyttä varten suunniteltu M Combo -sarja määrittelee huippuosaamisen analogisten bassosoundien ja tarkkuuden osalta. M Combo-sarjan combot, joissa on mittatilaustyönä valmistetut Eminence®-kaiuttimet ja tehokas 500 W:n D-luokan tehomoduuli, sopivat erinomaisesti muusikoille, jotka vaativat ensiluokkaista analogista luonnetta esiintymispaikoissa, harjoituksissa ja kotikokoonpanoissa.

Top Panel Features
Input: Use this jack to connect your instrument via a standard ¼” mono cable.
Headphone Output: Connect your Headphones and enjoy the analog cabinet emulation.
Passive/Active: Use this push-button switch to change from passive to active mode. If your bass is active it can have a hotter signal making the amp to distort early (feel free to use if such additional distortion is desired).
Compression: Controls the amount of dynamic compression. The make up gain is adjusted automatically.
Drive: Controls the amount of distortion that the Microtubes Engine will deliver. Press to select the drive mode: OFF/Vintage Microtubes /Microtubes B3K.
Blend: Use this knob to mix between the Clean signal and the Distortion signal.
Level: Controls Microtubes Engine’s output volume.
Low: ±12 dB @ Low shelf
Low Mids: ±12 dB @ 500 Hz/1 kHz
Hi Mids: ±12dB @ 1.5 kHz / 3 kHz
Treble: ±12dB @ High shelf
Master: Use this knob to control the overall volume of the combo. Press for Mute.

Back Panel Features
AC Socket: Use this connector to feed electric power to the amplifier. 100 – 230 VAC, 50-60Hz. Set the voltage selector switch to the correct position before turning on the amplifier!
Tweeter: Turn the tweeter ON/OFF.
Pre/Post: Select between the unprocessed clean DI and the processed signal.
DI Output: Use this connector to send your signal to the console, mic preamp, interface, etc.
Ground Lift: Use this control to lift the ground of the XLR output. If you are experiencing ground noise in your DI signal, try changing this control.
Aux In: Connect this to the headphone output of your laptop, cellphone, MP3 player, etc. The Aux In signal is fed only to the headphone output.
Return: Use this input to receive the signal from your outboard gear.
Send: Use this output to send the signal to your outboard gear.
Footswitch. Use to connect the Darkglass Super Intelligent Footswitch or MIDI Footswitch using a 1/4" mono instrument cable.
External Speaker: Use this connector to connect the amplifier to an external speaker cabinet. The SpeakON Combo jack allows for SpeakON or ¼" speaker cable operation. The minimum load impedance is 8 Ohm. The minimum power rating must be 250 W.

Technicals details
Woofers: Custom Design Eminence® Speaker
Horn: Eminence® Tweeter
Cabinet Material: Balsa Wood
Power Rating RMS:500 Watts
Dimensions
Width: 43.0 cm / 17"
Depth: 49.5 cm / 19.4"
Height: 43.5 cm / 17.1"
Weight: 14.5 kg / 32 lb
