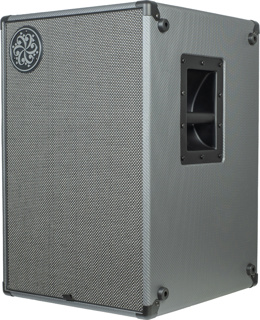

Darkglass Infinity 500 Combo 210

Darkglass Infinity 500 Combo 210

Infinity Combo -sarja on tehokas 500 watin vahvistin, joka on varustettu räätälöidyillä Eminence®-kaiuttimilla, ja se on suunniteltu modernille basistille. Sen käyttäjäystävällinen käyttöliittymä ja pilveen tallennettavat esiasetukset mahdollistavat saumattoman siirtymisen eri soundien välillä tien päällä. Sen äänellinen monipuolisuus tekee siitä ihanteellisen live-esiintymisiin ja harjoitussessioihin eri tyylilajeissa.

Top Panel Features
Input Jack: Use this jack to connect your instrument via a standard ¼” mono cable.
Headphone Output: Connect your Headphones and enjoy an IR emulating your cabinet sound.
Preset: Pressing the preset button changes through presets 1 to 5 and a bypass signal. Long press to store the current preset.
Input: Controls the amount of analog input gain. Press to activate/deactivate the effects loop for the preset.
Compression: Controls the amount of dynamic compression. The make up gain is adjusted automatically. Press to select between compressor OFF/Pre/Post drive position.
Drive: Controls the amount of gain of the selected drive mode. Press to select between: OFF/Leo Bass/Vintage Microtubes/Microtubes B3K/Alpha·Omega. Long press to access the Noise Gate threshold control.
Tone: Controls the Drivel tone/ Octaver filter. Press to select which control is active.
Level: Controls the Drive level/ Tweeter level. Press to select which control is active.
Blend: Controls the Drive blend/ Octaver blend. Press to select which control is active.
Preset Vol: Controls the preset volume. Press to toggle between the 7 IR slots/IR bypass for Post DI & Headphone OUT.
Graphic EQ section: Preset-specific Darkglass EQ. ± 12 dB @ Low Shelf/250 Hz/500 Hz/1.5 kHz/3 kHz/High Shelf.
Master: Controls the overall volume of the speaker and headphone outputs. Press for Mute + Tuner. Long press for Bluetooth pairing. (Audio+Suite).


Back Panel Features
MIDI In: Standard DIN connector. Use the 7-pin MIDI connector only with the Darkglass MIDI footswitch, and use a 5-pin connector with other MIDI equipment.
USB: The USB-C port unlocks Combo’s USB audio interface capabilities and allows connection to the Darkglass Suite. USB MIDI In/Out is also supported.
Post DI Output: Use this connector to send your signal to the console, mic preamp, interface, etc. This output provides the processed signal with or without the IR.
Ground Lift: Use this control to lift the ground of the XLR outputs. If you are experiencing ground noise in your DI signal, try changing this control.
Pre DI Out: Use this connector to send your signal to the console, mic preamp, interface, etc. This output provides the unprocessed signal.
Line Out: Use this connector to send your signal to line input of a console, interface, etc. This output provides the processed signal without the IR. You can also link several combos together using this output!
Line In: This input accepts +4 dBu line level signals from an amp modeler, keyboard, etc. Use this input when linking Darkglass Combos.
Send: Use this output to send the signal to your outboard gear.
Return: Use this input to receive the signal from your outboard gear.
External Speaker: Use this connector to connect the amplifier to an external speaker cabinet. The SpeakON Combo jack allows for SpeakON or ¼" speaker cable operation. The minimum load impedance is 8 Ohm. The minimum power rating must be 250 W.

Technicals details
Woofers: Custom Design Eminence® Speaker
Horn: WGS-410
Cabinet Material: Balsa Wood
Power Rating RMS: 500 Watts
Dimensions
Width: 46.5 cm / 18.3"
Depth: 61.1 cm / 24"
Height: 39.5 cm / 15.55"
Weight: 17.3 kg / 38.13 lb
