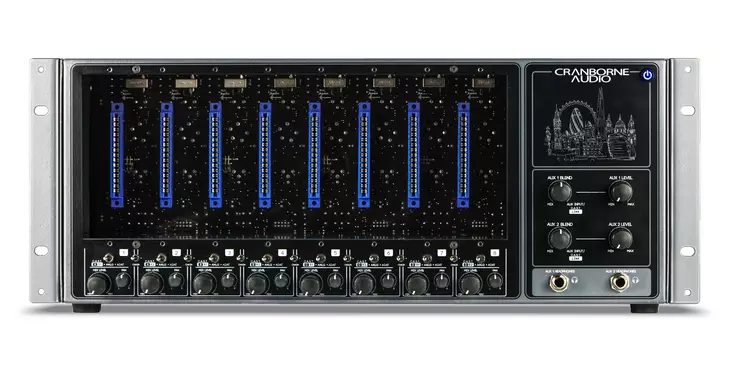

Cranborne Audio 500ADAT

Cranborne Audio 500ADAT
- 8-paikkainen 500-sarjan räkki
- 8 sisään / 8 ulos ADAT-laajennin mille tahansa ADAT:lla varustetulle audio interfacelle
- Toimii myös analogisena summausmikserinä ja artistimikserinä
- Yhteensopiva mm. monien Universal Audio, Focusrite ja Audient -äänikorttien kanssa ADAT-väylässä

Mukana ulkoinen virtalähde.

Expand your studio. Expand your sound.

500ADAT is home to 8 of your favourite 500 series modules. It's also an 8in/8out ADAT expander, analogue summing mixer, and artist mixer. It expands the I/O of any ADAT-equipped audio interface.

ADAT Simplicity

Connect 500ADAT to any ADAT Equipped audio interface and expand your available inputs and outputs by 8. Get more out of your current audio interface by using tried, tested, and reliable ADAT.

500 Series Possibilities

500ADAT combines a high-current 8-slot 500 series chassis with digital conversion and ADAT - a powerful and accessible way to get your favourite 500 series modules into your tracking and mixing digital workflow.

Features

8 Channel A/D-D/A converter
- 8-in/8-out @ 44.1kHz - 48kHz
- 8-in/8-out @ 88.2kHz - 96kHz
- 4-in/4-out @ 176.4 - 192kHZ

High-performance A/D-D/A conversion
- Dynamic Range: 121dB A-weighted, AES17 method, 20Hz - 20kHz
- Frequency Response: -1dB, 2.2Hz to >80kHz
- THD+N: <0.00032% (-110dB) @ -4dBFS, 20Hz - 40kHz, 1kHz, A-weighted

- Max I/O Level: +24dBu

 Master reference-quality internal clock
 - Capable of 44.1, 48, 88.2, 96, 176.4, and 192kHz operation
 - <0.5ps of jitter
 - Dedicated Word Clock Input and Output via BNC
 - External sync options using Word Clock BNC or ADAT

 Analogue summing mixer
 - 8-into-2 analogue summing mixer with +26.5dBu of headroom and balanced 1/4" jack outputs
 - C.A.S.T. link port for increasing summing mixer to 16-into-2 using Cranborne Audio 500ADAT

 Zero-latency artist mixer
 - Zero-latency analogue artist mixer with physical level/pan controls per channel and aux input blend controls
 - 2 high-power headphone outputs with independent blend and level controls

Reference-Quality Headphone Outputs
 - THD+N: <0.0006% (-104.4dB) @ 20dBu, 1kHz, A-weighted, 300ohm load
 - Output Wattage (1kHz): 250mW x 2 @ 600 ohms, 650mW x 2 @ 220 ohms, 1.21W x 2 @ 100 ohms, 500mW x 2 @ 32 ohms
 - Frequency Response: 1dB, <1Hz to >70kHz

High-current 8-slot 500 series rack
- 250mA current per-slot with 2A total for all slots
- XLR inputs, XLR line outputs, and TRS Inserts (pre-ADC) per 500 series slot
- Module source switching options to send Analogue, USB or external C.A.S.T. signals through your favourite 500 series modules

- Module bypass switches per-slot allowing 500ADAT to be used without 500 series modules inserted.

C.A.S.T. Compatible
- C.A.S.T. ports per channel for relocating analogue I/O around studio using passive or active C.A.S.T. breakout boxes via standard shielded Cat 5

24v, 5a external locking power supply
- External power supply for improved analogue audio performance and heat dissipation.

Designed and Engineered in the UK
- Each and every 500ADAT is extensively tested by a team of dedicated engineers to ensure reliability and consistency.
