BSS AR133 aktiivinen DI-boksi
- Tuotekoodi: 7BSAR133
- Takuu: 2 vuotta
- Paino pakattuna: 0.8 kg
-Alumiinivalukuorinen aktiivinen DI-boksi
-BSS AR133 on ollut alan standardi jo 30 vuotta "luotettu keikkajuhta"
-PA- / studio- / hifi-käyttöön laadukaan signaalin varmistamiseksi
-Jakkitulon lisäksi myös XLR-tulo!
-Pad: -20 /-40 dB
Tekniset tiedot:
| Tyyppi | Aktiivinen |
| Taajuusvaste (Hz) | 30 - 20,000 (+0dB/-1dB) |
| THD | 0.005% (@ 1khz, 0dbu) |
| Dynamiikka-alue (dB) | - |
| Sisääntulo impedanssi | 1 mOhm (pad at 0dB), 47 kOhm (pad at -20dB or -40dB) |
| Max. gain | +8dBu @ 600 ohms. |
| Gain | - |
| Clip level - ulostulo | - |
| Ulostuloimpedanssi (ohm.) | - |
| Pohjakohina | -105db @ 22hz-22khz |
| IM-särö | - |
| Kytkimet | pad (0 / 20 / 40dB) |
| Vaiheensiirto | - |
| Summaus | - |
| Vaiheenkääntö | - |
| Virransyöttö | +20 volt. DC - 48 volt. DC |
| Liittimet (sisään) | 2x 6,5mm plugi, XLR |
| Liittimet (ulos) | XLR |
| Mitat (K x L x S cm) | 5,9 x 12,4 x 14,3 |
| Paino (kg) | 0,65 |
The unit includes phantom power and battery supplies as standard. Should the phantom power from the console fail or be accidentally switched off, the AR-133 automatically switches over to the internal 9V battery providing uninterrupted use.
The unit is housed in a rugged aluminium extrusion case, with robust polyurethane end-cheeks which give the AR-133 a very distinctive look.

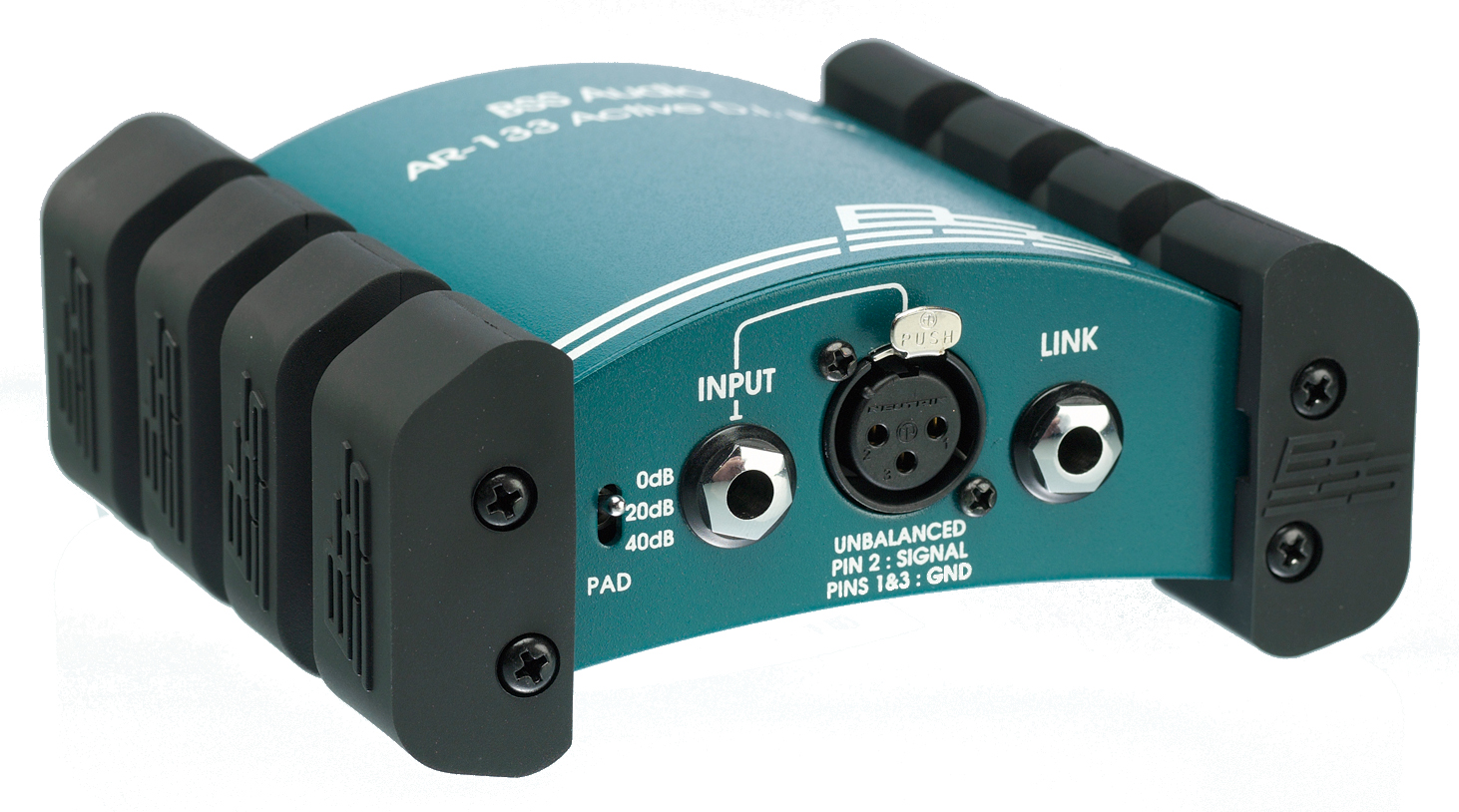

Input connectors are both 1/4" jack sockets and an XLR socket, the latter meaning that the AR-133 can be used to convert unbalanced signals to a balanced output on XLRs throughout.
The arched case allows cables to run back underneath the unit from the end for neat cable management.
Input attenuation is 0, -20 or -40dB, making the box suitable for instrument, line or amplifier levels on inputs. On the output side, a ground-lift switch is provided for quick solutions to ground-loop problems.
The AR-133 uses an enhanced version of the same audio path as the AR-116, now regarded by many people as a reference standard. The sound quality is legendary, particularly on acoustic and bass guitars.
Numerous applications can be satisfied by the AR-133. For example, as well as the traditional guitar use, the AR-133 can be used with keyboards, DJ consoles, amplifier outputs, and other electronic sources.
An additional bonus is the ability to use the AR-133 as an active balancing device.
More Details
ARCHITECT'S AND ENGINEER'S SPECIFICATION
AR-133 Active DI Box / Line Balancer
The Active Direct Inject box shall provide a transformer balanced and isolated feed from a source input via a 1/4" TRS jack or 3-pin XLR-type connector. The output of the DI box shall be via an XLR connector. The unit shall also provide a 1/4" TRS jack in parallel with the input to act as a link for line bridging. The link shall be a direct feed from the input, or shall optionally be fed from an actively buffered input signal.
The unit shall be powered either via a phantom power source, or via a standard PP3 type 9 volt battery. An led shall illuminate continuously to show power is provided by a phantom source, or flash approximately every 2 seconds if powered by the battery.
Switches shall be provided for: EARTH LIFT (output pin 1 disconnected from unit ground), INPUT ATTENUATION (of 0, 20 or 40dB), and Power On/Off.
The unit shall be housed in an aluminium extrusion fitted with isolating side-cheeks. The unit shall be sufficiently screened so it is not susceptible to external magnetic fields.
The Active DI box shall be the BSS Audio AR-133.
