Axiom Pro AX800A / SW1800A PA-järjestelmä (demo)

Axiom Pro AX800A / SW1800A PA-järjestelmä, demo (22.890,00)
Huom! Setti on noudedettavissa vain liikeestämme tai painavasta rahdista on sovittava erikseen!

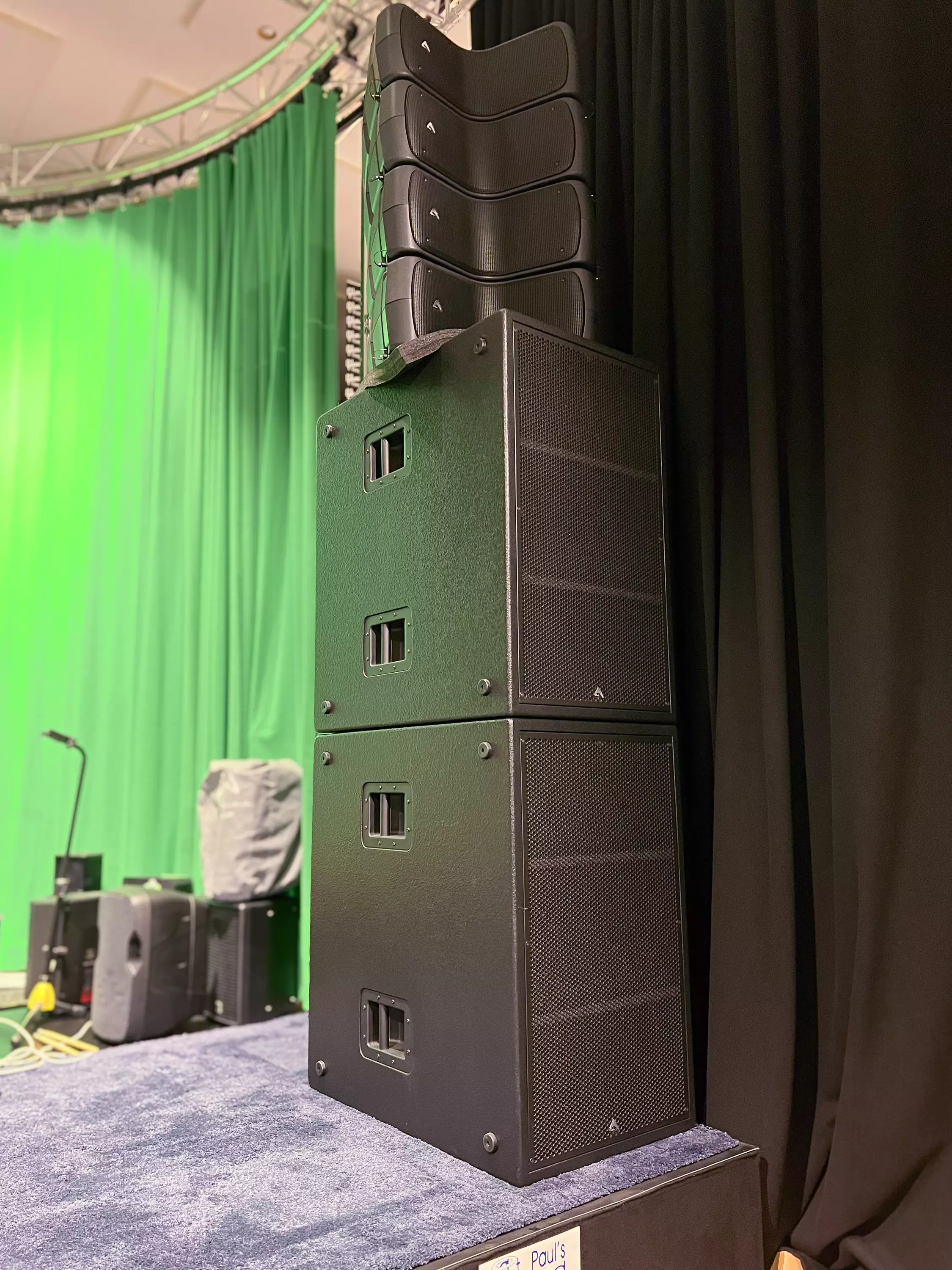

- Järeä Pro-tason aktiivinen PA-järjestelmä neljällä Line Array -aktiivikaiuttimella ja kahdella tupla-18" aktiivisubwooferilla audio- ja PowerCon-virtakaapeleineen
- Liikkeessämme esillä ollut täysin toimiva ja uudenveroinen setti täydellä takuulla
- Settiä on koeponnistettu muutaman kerran liikkeessämme
- Setti soundaa todellakin hyvälle

Setti koostuu seuraavista:

4 x Axiom AX800A Line Array aktiivikaiutin
a':
- 132 dB SPL
- 900 + 300 W (=1,2 kW) aktiivinen bi-amp kabinetti
- 2 x 8" + 2,5" driveri

2 x Axiom SW1800A aktiivisubwoofer
a':
- 139 dB SPL
- 2 kW
- 2 x 18"
- 36 Hz - 115 Hz (-3dB)

1 x Axiom USB-CANBUS Converter
Mukana lisäksi kaupanpäälle audio- ja PowerCon-virtakaapelit (arvo n. 500,00)

AX800A:

The AX800A is a compact lightweight powered line array element that combines superior sound quality with flexibility and ease of use in an organically styled moulded enclosure. It is designed for a wide range of general purpose indoor and outdoor live sound applications and many types of fixed installations. To fully extend low frequency response the AX800A is designed to be used with the complementary SW1800A subwoofer, a compact dual 18” hybrid manifolded bandpass design, in a recommended 4:1 ratio.

SYSTEM

System’s Acoustic PrincipleLine Array Element
Short Transmission Line LF Back Loading
Acoustic Transmission Line HF Waveguide
Frequency Response (±3dB)85 Hz – 16.8kHz (Processed)
Horizontal Coverage Angle100° averaged, 1 KHz to 12,5 KHz (-6dB)
Vertical Coverage Angle10° averaged, 1 KHz to 12,5 KHz (-6dB)
SPL @ 1m132 dB

TRANSDUCERS

LFTwo 8”(200mm), 2” (38mm) voice coil, 8 ohm each, paralleled
HFOne 1.4” driver, 2.5” (64mm) edgewound voice coil, titanium diaphragm, 8 ohm

ELECTRICAL

Input Impedance20 kO balanced, 10 kO unbalanced
Input Sensitivity +4dBu / 1.25 V
Signal ProcessingCORE processing, 96kHz / 40bit floating point SHARC DSP, 24 bit AD/DA converters
Direct access Controls4 Presets (Standard/Long Throw/Down Fill-Single Box, User), Network Termination, GND Link
Remote ControlsPRONET control software
Network protocolCANBUS
Amplifier TypeClass D with SMPS
Output Power900W + 300W
Mains Voltage Range (Vac)230V ±15% - 115 ±15% 50/60Hz (internally selectable)
IN / OUT ConnectorsNeutrik XLR-M / XLR-F
IN / OUT Network ConnectorsETHERCON®(NE8FAV)
Mains Input ConnectorPowerCon® (NAC3MPA)
Mains Link ConnectorPowerCon® (NAC3MPB)
CoolingVariable speed DC fan

ENCLOSURE & CONSTRUCTION

Physical Dimensions
Width600 mm (23.60”)
Height265.5 mm (10.45”)
Depth516 mm (20.30”)
Enclosure MaterialPolypropylene
Suspension system
Front SuspensionAluminum Fast Link structure
Back SuspensionHigh Strength Steel with ¼ Fast Pin
Net Weight25 Kg (55.10 lbs.)

SW1800A:

The SW1800A is a compact powered manifolded subwoofer designed to provide sub-bass support for the compact AX800A compact line array, and features some of the most advanced technologies for low frequency reproduction. The manifolded bandpass design uses manifold loading of the front side of the speaker cones to maximize the mutual coupling between the two drivers. This innovative configuration does not use any large resonant cavity to load the speakers, but very compact cavities in order to obtain advantages in terms of definition, both at the lowest end and the upper bass.

SYSTEM

- System’s Acoustic Principle Manifolded Band Pass
- Frequency Response (±3dB) 36 Hz – 115 Hz (Processed)
- SPL 139 dB

TRANSDUCERS

- TypeTwo 18” (460mm) woofers, 3” (75mm) VC
- ConeHigh stiffness, water repellent

ELECTRICAL

- Input Impedance20 kO balanced, 10 kO unbalanced
- Input Sensitivity +4dBu / 1.25 V
- Signal ProcessingCORE processing, 96kHz / 40bit floating point SHARC DSP, 24 bit AD/DA converters
- Direct access Controls4 Presets (Standard/InfraSub/Cardioid/User), Network Termination, GND Link
- Remote ControlsPRONET control software
- Network protocolCANBUS
- Amplifier TypeClass D with SMPS, Variable Switching Frequency
- Output Power1000W + 1000W
- Mains Voltage Range (Vac): 230V ±15% - 115 ±15% 50/60Hz (internally selectable)
- IN / OUT Connectors: Neutrik XLR-M / XLR-F
- IN / OUT Network Connectors: ETHERCON (NE8FAV)
- Mains Connectors: PowerCon TRUE1 - NAC3PX (In/Out)
- Cooling: Variable speed DC fan

ENCLOSURE & CONSTRUCTION

- Physical Dimensions: Width 570 mm, Height 960 mm, Depth880 mm, Depth Including Wheels 1008 mm (39.70”)
- Enclosure Material: 15mm, reinforced phenolic birch
- Paint: High resistance, water based paint
- Transport: 4 heavy duty 100 mm (4") castors, 6 handles
- Net Weight: 70 Kg (154.30 lbs)
