ARX Ear Driver kuulokevahvistin

ARX Ear Driver kuulokevahvistin (445,00)

ARX Ear Driver on erittäin pienikokoinen 4-kanavainen kuulokevahvistin, jonka avulla voit säätää itsenäisesti jopa 4 kuulokesarjan äänitasoja.

Laajennetut syöttövaihtoehdot
Vasemman ja oikean 6,5 mm:n (1/4") jack-sisääntulon lisäksi laitteessa on myös stereo Mini Jack -sisääntulo, joten sitä voidaan käyttää minkä tahansa kannettavan mediasoittimen kanssa. Jos asetat 6,5 mm/1/4 tuuman liittimen vain vasempaan sisääntuloon, kaikki lähdöt ovat monoäänisiä, mikä lisää joustavuutta.

Ominaisuuksiltaan monipuolinen, kompakti ja tehokas, intuitiivinen ARX Ear Driver on todellinen ammattilaisen nelikanavainen kuulokevahvistin mihin tahansa yksittäiseen mionitorointisovellukseen.

Ear Driver

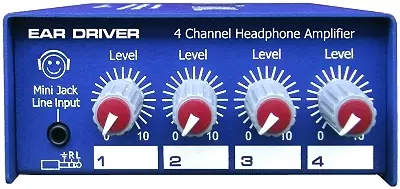

The ARX Ear Driver is an ultra compact Headphone monitoring breakout box, allowing you to independently adjust the audio levels of up to 4 sets of headphones. Internally, stereo true Class AB amplifiers drive the headphones, for pristine audio reproduction

Expanded Input Options
As well as Left and Right 6.5mm (1/4") jack inputs, there is also a stereo Mini jack input, making the unit usable with any portable media player. Inserting a 6.5mm/1/4" into the Left Input only will Mono all Outputs for added flexibility.

The Ear Driver's heavy duty all-steel chassis is finished in attractive matt textured blue polyurethane, with hardwearing epoxy screen printing and slip resistant rubber base pad.

The Ear Driver requires 9 - 15V DC power to operate. This can be supplied from any well regulated 9 or 12 Volt wall mounted DC power supply, with the connector wired Centre Pin positive (+) and Outer Sleeve negative (–).
Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting.

Feature packed, compact and powerful, the intuitive ARX Ear Driver is a true professional Four channel headphone amplifier for any individual mionitoring application.

Inputs: 40 K Ohms Balanced, 20 K Ohms Unbalanced
Stereo Headphone Outputs: 4 independent stereo power amplifiers each delivering 1 watt @ 8 ohms max.
Frequency Response: 20 Hz - 20 KHz ± .5dB
Distortion: Max .1% prior to clipping.
Power Requirements: 12V DC from external supply, wired Centre Pin positive (+) and Outer Sleeve negative (–).
Input Connectors: Mini-jack stereo connector, Insulated Left and Right jack connectors. Inserting 1/4" jack into Left Input only will mono all Outputs for added flexibility.
Output Connectors: Insulated Tip-Ring-Sleeve jack. Wired Tip - Left out, Ring - Right out, Sleeve - Ground / Earth x 4 channels
Construction: All-steel chassis, fibreglass PCB; External 12 V DC power supply required for operation
