ART MX822 räkkimikseri

ART MX822 räkkimikseri (399,00)
- 8-kanavainen räkkimikseri, jonka jokainen kanava tarjoaa mono- ja stereotulon sekä itsenäiset taso-, panorointi- ja efektilähtösäädöt
- Ykköskanavassa on lisäksi valinnainen mikkitulo phantomilla
- 8 stereo/mono-tulokanavaa omilla taso-, panorointi- sekä effects send -säädöillään
- Efektilenkki omilla lähtö- ja tulotasosäädöillään
- Kuulokelähtö etupaneelissa omalla tasosäädöllään
- Valinnainen XLR-mikrofoni tai plugitulo kanavassa yksi
- Mikkikanavassa valinnainen +48V phantom
- Useamman laitteen ketjutus
- Tukeva 1U-runko

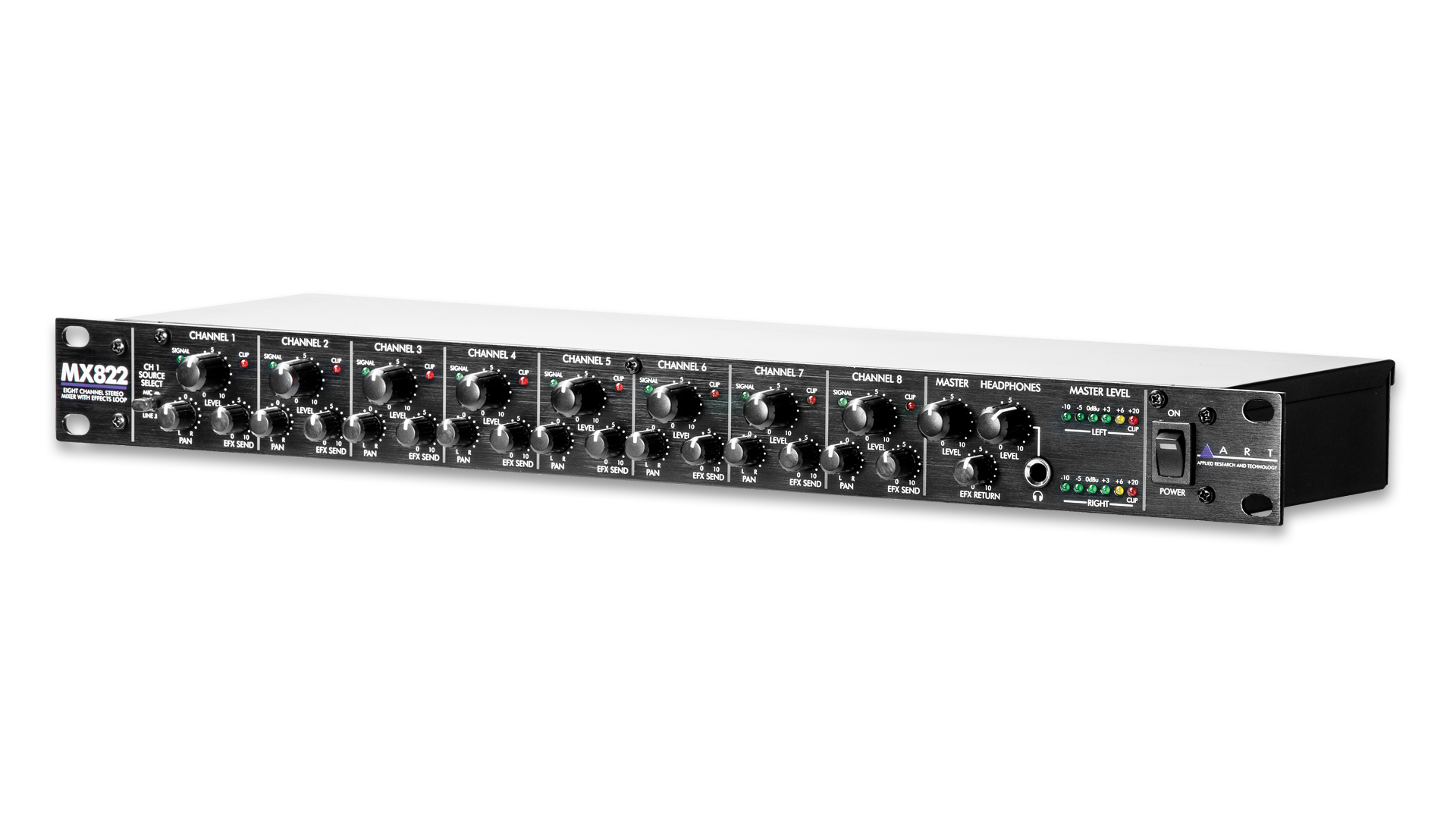

The ART MX822 Eight Channel Stereo Rackmount Mixer? is a versatile eight input mixer for studio, live sound or installation applications. Each input accepts a mono or stereo signal and provides independent level, pan and effects send controls. Channel One includes a switchable mic/line source select and the XLR mic connector provides switchable phantom power.

Multiple MX822s may be chained for additional inputs using common 1/4-inch TRS cables. External effects processors can be linked in and mixed with independent level controls. A front panel headphone jack with separate level control allows independent monitoring.

Specifications

Input ConnectionsXLR-F balanced (MIC)
1/4? TRS unbalanced (Ch1-Ch8, Effects Return)
1/4? TRS stereo unbalanced (EFX Buss, Main Expand)
Output ConnectionsXLR-M balanced (Main)
1/4? TRS unbalanced (Effectss Send)
1/4? TRS stereo unbalanced (Monitor, Main Expand, Headphone)
Input Impedance1k O (MIC), 5k O (Ch1-Ch8)
Output Impedance<1k O (Main, balanced), <25 O (Headphone)
Total Harmonic Distortion<0.01% @ 1kHz
Signal to Noise Ratio> 90dB typical (Ref 0dBu)
Maximum Input Level-19dBu (MIC), +24dBu (Ch1-8)
Maximum Output Level+24dBu (Main), +18dBu (Monitor, Effects Send)
Maximum Gain+60dB (MIC), +14dB (Ch1-8)
Phantom PowerSwitch Selectable, +48V DC, filtered, current limited
Power RequirementsUSA – 95 to 125 VAC, 50-60 Hz
Export units configured for country of destination
Dimensions1.75?H x 19?W x 6?D (44.5mm x 483mm x 152mm)
Weight6.5 lbs (2.95 kg)
