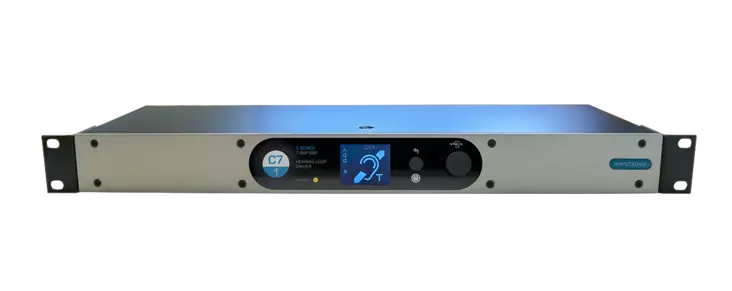

Ampetronic C7-1 induktiosilmukkavahvistin

Ampetronic C7-1 D-luokan induktiosilmukkavahvistin (1699,00)
Rajoitettu tarjous!
- n. 300-450 m2 silmukka pinta-alalle
- 7A RMS ja digitaalinen signaalin prosessointi
- Mikrofoni- ja linjatason sekä 100V linjatulot
- Matala 1 unitin kotelo

C7-1:ssä on 7 ampeerin RMS-virtasilmukkalähtö ja runsaasti jännitevaraa, joten se sopii monenlaisiin sovelluksiin.
Asennus voidaan suorittaa täydellisesti; ainutlaatuinen, monivaiheinen suodatus varmistaa yhteensopivuuden muiden
järjestelmien ja maailmanlaajuisten EMC-määräysten kanssa.

- Yksinkertainen digitaalinen käyttöliittymä tarkkaan säätöön
- Verkko- ja erillisvaihtoehdot
- Sisäänrakennetut testiäänet
- Yhteensopiva Loopworks Measure LoopLinkin kanssa kuljettajien suoraa ja automaattista ohjausta varten
- Selkeät ilmaisimet ja järjestelmädiagnostiikka
- Kompakti 1U telineasennusyksikkö sisäisellä virtalähteellä
- Optimoitu puhetaajuuksille vertaansa vailla olevalla ymmärrettävällä tavalla ja kykenee korkealaatuiseen musiikin toistoon
- Alan standardit Phoenix-liittimet
- Tiedot ovat IEC 62489-1 -standardin mukaisia
- 100V linjatulo

The C Series hearing loop drivers from Ampetronic mark a substantial development in hearing loop technology for assistive listening.
Compact, elegant, and sturdy, C Series units, the most versatile and powerful solutions available in their class, feature digital signal
processing and networking functionality. Dante options are available with a dedicated input for network audio.
Seven class 'D' drivers (four dual output and three single output models) make up the C Series; offering a significant increase in
energy efficiency over existing solutions in a similar price range.
The drivers feature a simple digital user interface, enabling accurate adjustment and providing clear indicators, system diagnostics
and built-in test tones. C Series drivers are fully networkable with a Wi-Fi accessible standard browser based control panel, for
remote set-up, monitoring and email alerts, and with Loopworks Measure LoopLink for easy test and commissioning.
The range goes from 5 to 14 Amps RMS current and 20 to 48 Volts RMS per output with the C14-2 providing the most powerful
loop driver on the market. This makes them suitable for a wide range of applications and room sizes. Installation can be performed
with total confidence; unique, multi-stage filtering ensures compatibility with other systems and global EMC regulations. The C
Series also boasts dual slope Metal Loss Control that caters for a wide range of metal loss frequency characteristics (network
versions only).

Features
•
Simple digital interface enabling accurate adjustment
•
Single or dual output options. Dual outputs featuring
accurate and stable 90° phase shift
•
Highly energy efficient Class-D amplifiers with low
heat dissipation providing low running and
maintenance costs
•
Networking with browser interface for remote
reporting, adjustment, active status monitoring and
remote fault reporting via email, SNMP or Telnet
•
Built-in test tones
•
Compatible with the Loopworks Measure LoopLink
app for direct and automated driver control
•
AGC and dual slope configurable MLC (including HF
boost option for un-even loss scenarios)
•
Up to 3,200m2 area coverage
•
Compact 1U rack mount unit with internal
transformer for simple rack installation
•
Optimised for speech frequencies with unmatched
intelligibility and capable of high quality musical
reproduction
•
Dante option with AES67
•
100V line input
•
Industry standard Phoenix connectors
•
Data compliant with IEC 62489-1 Standard

INPUTS
Input 1 & 2: 3 way 3.5mm euroblock screw terminal input (supplied) with a balanced microphone and line level operation, selectable via rear panel switch. Switchable 250Hz low cut filter. Priority input option (network models only).
Microphone / Line: Microphone specification; 200 – 600O, sensitivity -67dBu. Selectable 24V phantom power on microphone only Line sensitivity -42dBu. Max line level 17Bu. Max mic level -8dBu.
100V Line (Input 2 only): 2 way 5mm euroblock screw terminal (supplied) Sensitivity +7dBu
Dante (Optional C5/C7): RJ45 Ethernet, control and monitoring. Hosted web server, Telnet & SNMP.

OUTPUTS
Loop Connectors: 4 way 5mm euroblock screw terminal (supplied) for each output, for twisted pair or star-quad configured feed cables
DC Output: 2 way 3.5mm euroblock screw terminal (supplied). Re-settable, fuse protected 12V 0.1A. Controllable to reflect amplifier status (network models only)
Line Output: 3 way 3.5mm euroblock screw terminal (supplied) post AGC balanced output
USB: Firmware updates or power for wireless router (200mA max).
