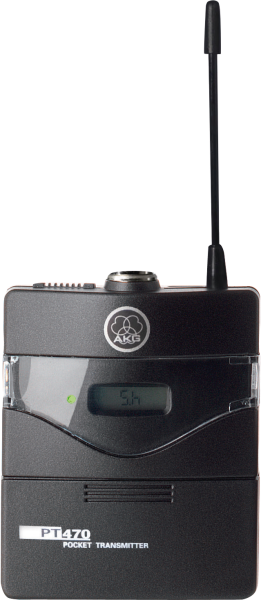

AKG PT470 vyölähetin

AKG PT 470 vyölähetin
- Vyö/taskulähetin AKG WMS470 sarjaan
- Mukana paristo
- Eri taajuusvaihtoehtoja
- Pilot Tone
- LCD-näyttö
- Mini XLR 3-pin liitäntä
- Mukana: 1 kpl AA paristo


FLEXIBLE AND EXPANDABLE for conference, medium theater and houses of worship applications

The PT470 is an analog professional wireless body-pack transmitter in a small, rugged housing. A pilot tone transmission prevents unexpected startup noise, continuously sending transmitter data, including low battery information, to the receiver. An enhanced battery management allows up to 14 hours of operation on a single AA-size battery. With the integrated charging contacts, a standard NiMH rechargeable battery can be charged inside the transmitter.

An optional RMS4000 external mute switch allows the user to mute the transmitter remotely. Its professional mini XLR audio connector makes the body pack compatible with a broad range of lavalieres and headsets.

Pilot tone transmission
for transmitter battery status monitoring and tone code squelch

Compact, rugged body-pack design
for maximum wearing comfort

External mute switch connector
for remote muting of the microphone

Integrated charging contacts
for charging of a standard NiMH battery inside the transmitter

Infrared synchronization
for instant transmitter setup

Technical specification:

Audio:
Audio frequency bandwidth35 to 20000 Hz
Signal to Noise120 dB-A
THD at 1 kHz0.7 Prozent

Enhanced:
Peak deviation48 kHz kHz

Pocket Transmitter:
Nominal deviation20 kHz kHz
Radio Output Power (min/max)10 to 50 mW
Transmitter SynchronizationInfrared

Audio input:
TypeMini XLR
GenderFemale
Contacts3-pin
Maximum audio level12 dB

Mute Switch Interface:
TypeJack Mono (1/4")
GenderFemale

Battery 1:
BatterietypeLR6 AA alkaline battery
Number of Batteries1
Operating Time7 h

Battery 2:
BatterietypeHR 6 AA (NiHM) rechargeable battery
Compatibel Charging SystemCU400
Number of Batteries1
Operating Time8 h

Battery 3:
BatterietypeFR 6 AA lithium battery
Number of Batteries1
Operating Time14 h

Design:
BodyPlastic
Finishblack

Dimensions / Weight:
Length30 mm
Height73.5 mm
Width60 mm

Radio:
Switching bandwidth30 MHz
Recommended simultaneous channels24
Number of selectable frequencies1220 (selectable in 25kHz steps)
Frequency SelectionSelectable frequency in 25kHz steps
Wireless channels within device-
Radio Range (Line of Sight)100m (depending on antenna system)
Switchable RF Powerno
Modulation
Pilot Toneyes
